Output CurrentOutput VoltageFrequencySupply VoltageConsole
5 A12 VDC47 - 63 Hz95 - 264 VAC50L with Attachable TV
3.5 A24 VDC47 - 63 Hz95 - 264 VAC70T
Commercial Units Outlet & Breaker (Amps)Outlet Voltage
20 (no more than 10 units per breaker)120 VAC
12 (no more than 10 units per breaker)230 VAC
NOTE: Do not modify the plug provided with this product. If the plug does not fit into an available electrical
outlet, have a proper outlet installed by a qualified electrician.
NOTE: Make sure the power brick cord is securely connectedto thebase unit.A looseconnection mayresult
in the unit not receiving external power.

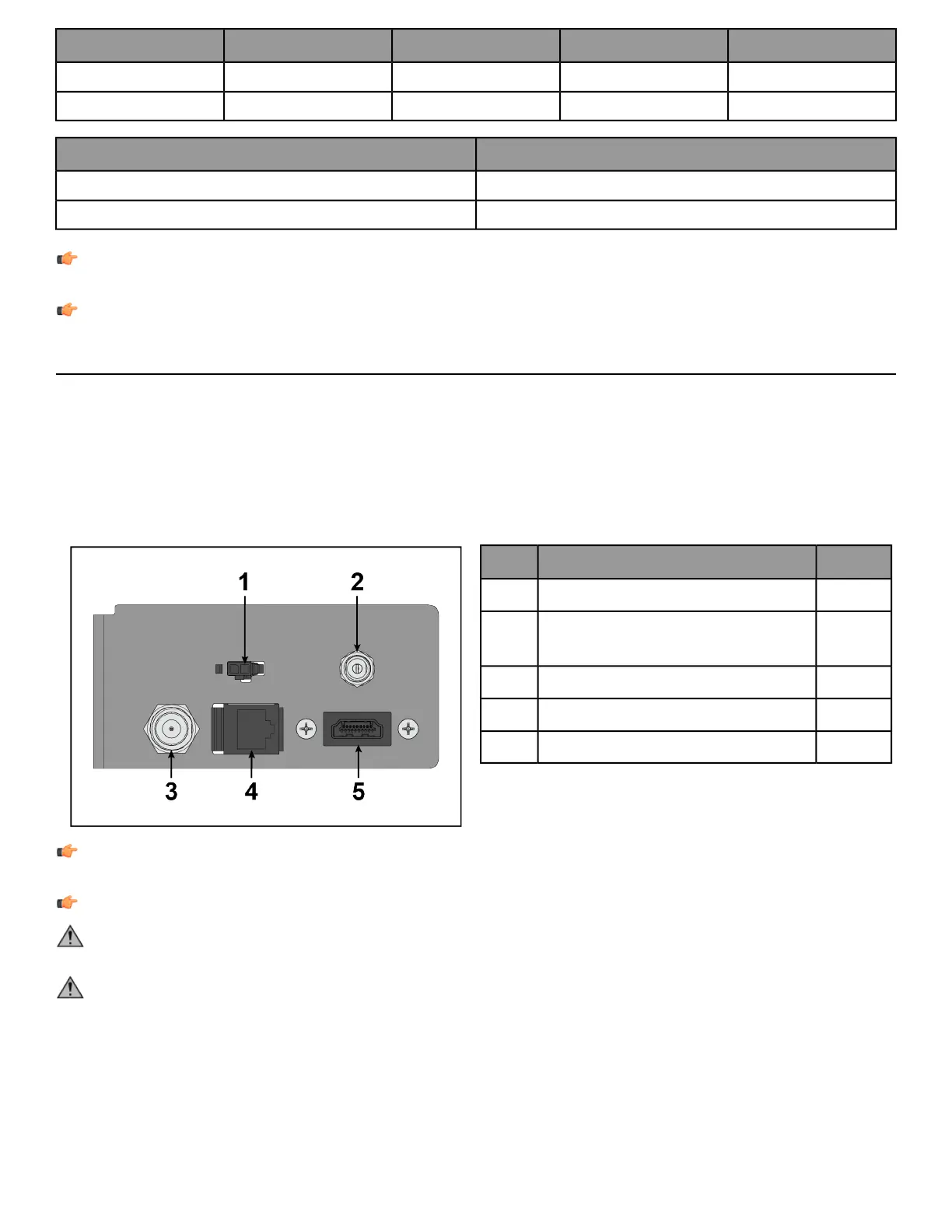

Install External Power Supply
Two different options exist for the external power supply. The 50L console, a self-powered unit compatible with
a 12 VDC optional power supply for enhanced charging features and the 70T, which requires a 24 VDC power
supply.
1. Plug in the power to the external power connector on the front end of the unit.
2. Tighten the connector to the unit until its securely in place.
3. Plug the cord into an AC outlet.
QtyDescription
1IR Cable Connector1
1
External Power for Console
Connector
2
1Coax Cable Connector3
1Ethernet Cable Connector4
1HDMI Cable Connector5
NOTE: If the console does not light up, contact Customer Support Service. Use only the power supply
provided in order to ensure against unsafe operation.
NOTE: CSAFE connections must be made at the console only.
CAUTION: Units with the50L console should ONLYuse the 12 VDCpower supply. The 70Tconsole REQUIRES
the 24 VDC power supply. Using a 24 VDC power supply will damage the console.
CAUTION: Connectors should easily fit into the receptacles. Forcing a connection may lead to damage to
the barrel connector and/or receptacle and may void product warranty. If the power supply barrel doesn’t
fit easily into the receptacle then the wrong power supply is being used.
Page 11 of 47
