4. Move unit to intended location.
5. Lower rear support legs.

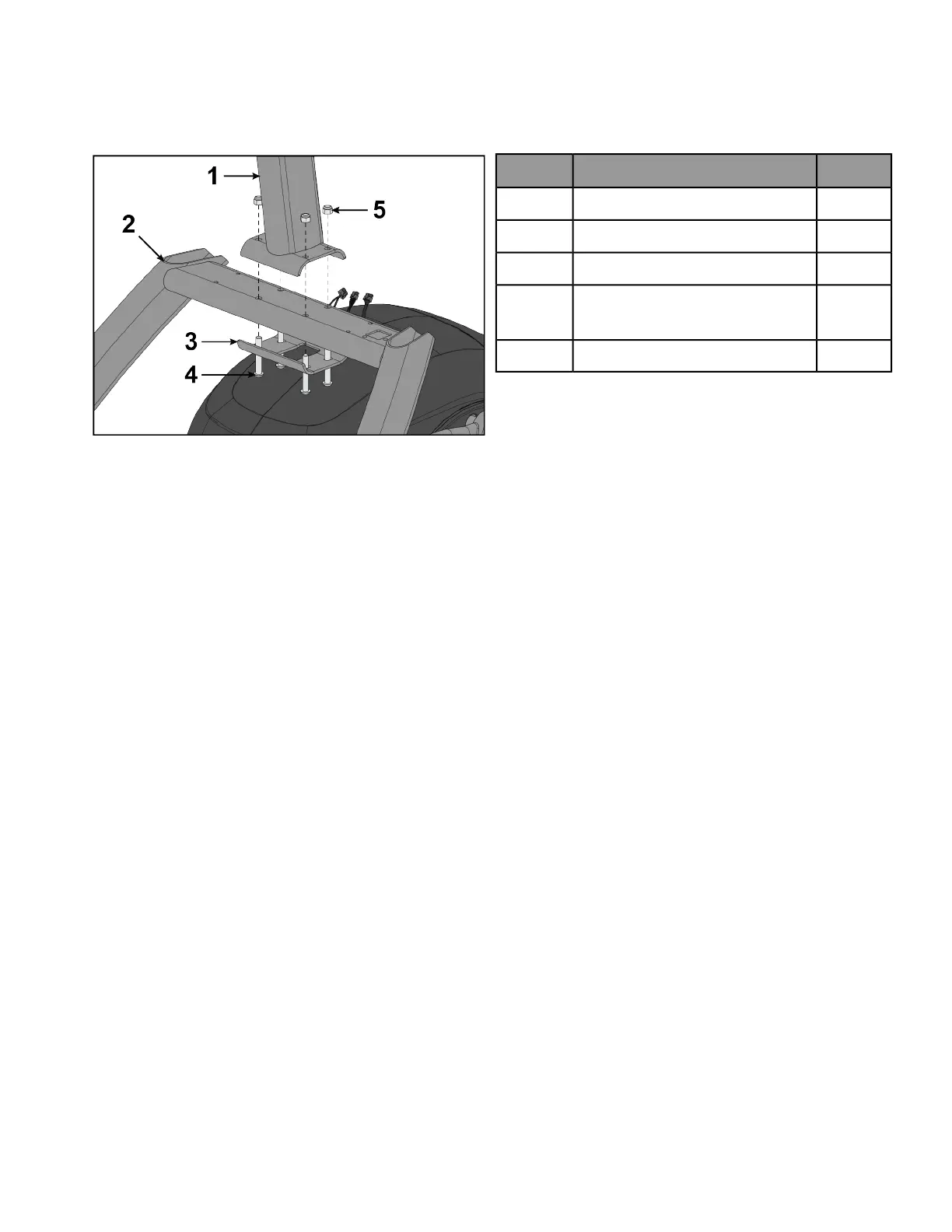

Install Console Weldment
1. Place console weldment into position on frame.
QtyDescriptionItem
1Weldment, Console1
1Frame2
1Bracket, Lower3
4
Screw, Socket Head, .375-16 x
2.5"
4
4Locknut, 375-16 Nylon5
2. Insert (from underneath) four bolts and lower bracket into frame and console weldment.
3. Thread four locknuts onto bolts by hand.
4. Tighten four bolts and locknuts with a 7/32” Allen wrench and a 9/16” open-end wrench.
Page 31 of 47
