Qty.Description

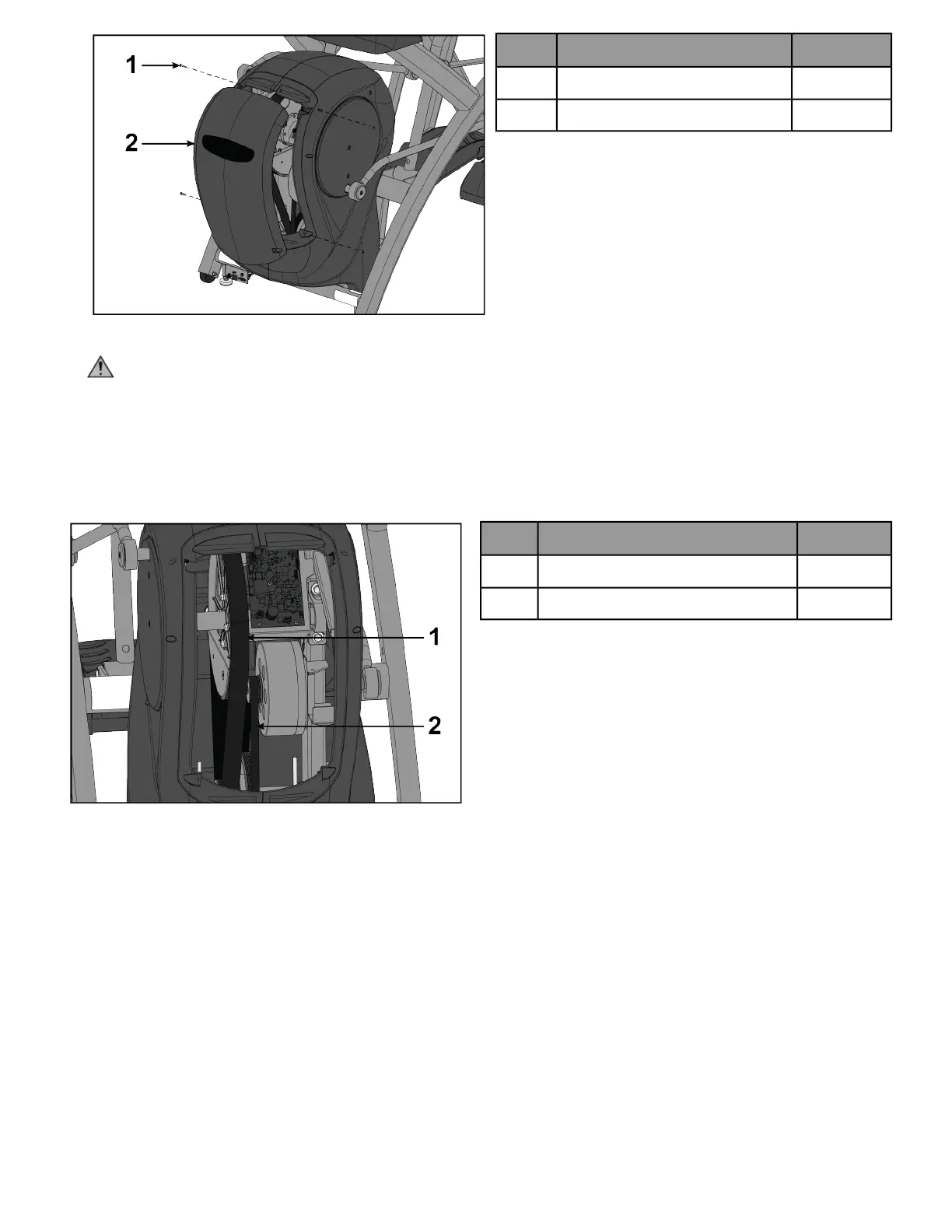

4Screw1
1Front Access Cover2
2. Remove access cover.
WARNING: Burn hazard. Do not touch flywheel until cool.
Inspect Drive Belts
There are two drive belts that may become loose, worn or cracked.
Unless the belts have been removed and not replaced properly, it is unlikely the belts will come loose or need to
be re-tensioned.
Qty.Description
1Primary Drive Belt1
1Secondary Drive Belt2
If a belt has cracks or appears worn, it must be replaced immediately by a qualified service technician.
Primary Belt
The wider of the two belts. It has grooves that keep it aligned on the large upper pulley.
Secondary Belt
The narrower of the two belts. It has grooves that keep it aligned on the flywheel's drive pulley.
Install Access Cover
Do not over tighten screws.
1. Replace and tighten the two upper screws using a Phillips screwdriver.
2. Replace and tighten the two lower screws using a Phillips screwdriver.
3. Test unit for proper operation.
