CYBEX VR3 - Exploded View Diagrams

Cybex VR3 12180 Tricep Press Owner’s Manual
Service
Page 6-3

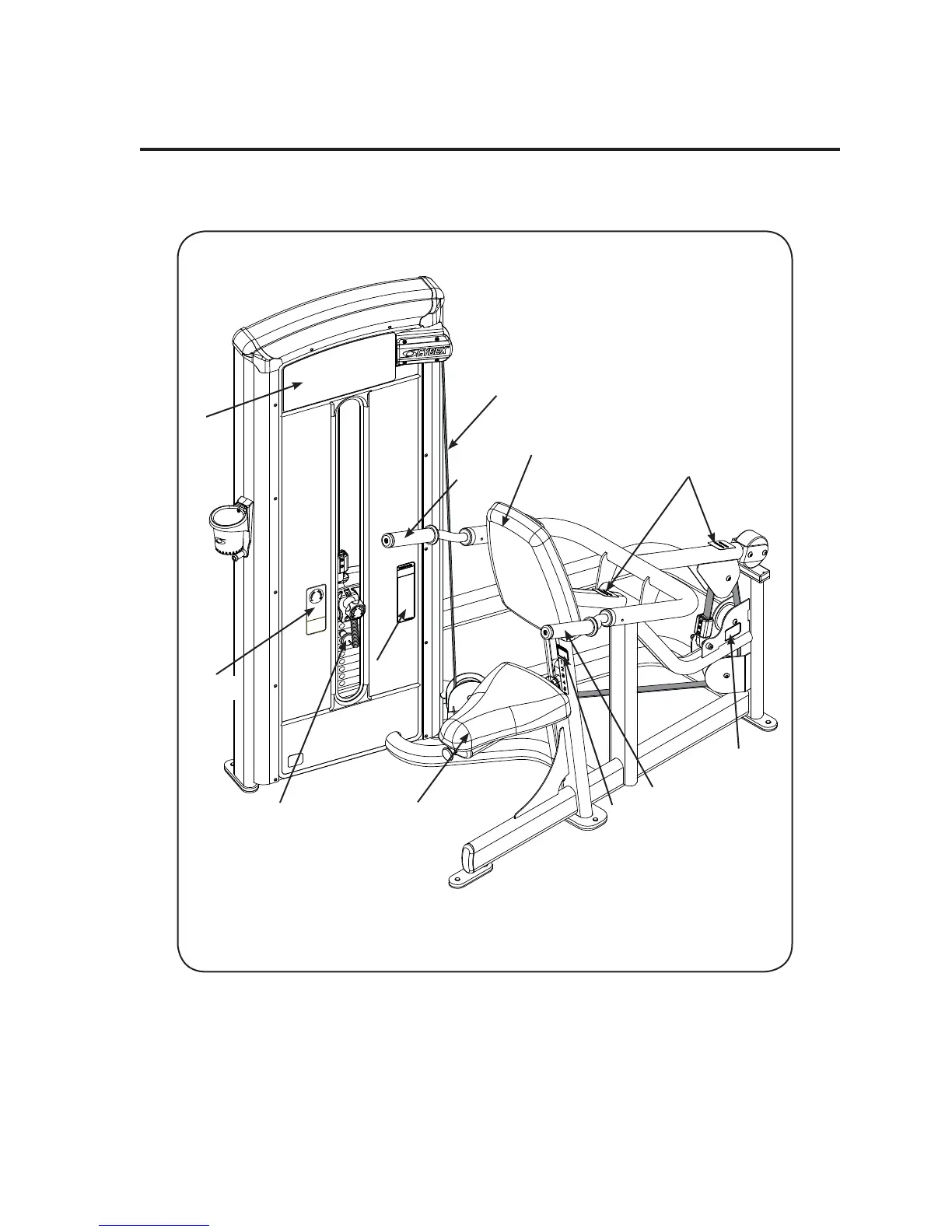

A. Caution Decal ......................4000Y316
B. Caution Decal ......................4520-362
C. Caution Decal ......................8500-026
D. Warning Decal.....................4605-381
E. Placard Decal ......................12180-598
F. Back Pad.............................4800-176
DESCRIPTION PART NO.
G. Seat Pad....... .......................4800-172
H. Grip ......................................12230-353
I. Serial Number Decal
J. Belt ......................................GB000202
K. Weight Selector Pin .............BH030207
L. Increment Weight Decal...... 11000-407
DESCRIPTION PART NO.
Tricep Press
PRODUCT NO. 12180
F
B
C
J
E
D
G
H
H
K
A
(Both Sides)
NOTE: See exploded-view for location of I (serial number decal).
L
