CYBEX VR3 - Light Stack Assembly Configuration

Cybex VR3 12180 Tricep Press Owner’s Manual
Service
Page 6-9
7
6
5
13
12
5
13
1
10
7
6
15
4
14
16
9
9
2
9
9
14
10
4
3
11
11
11
11
11
9
9
9
9
11
11
9
9
8
TOURQUE SET SCREWS
300-350 IN./LBS

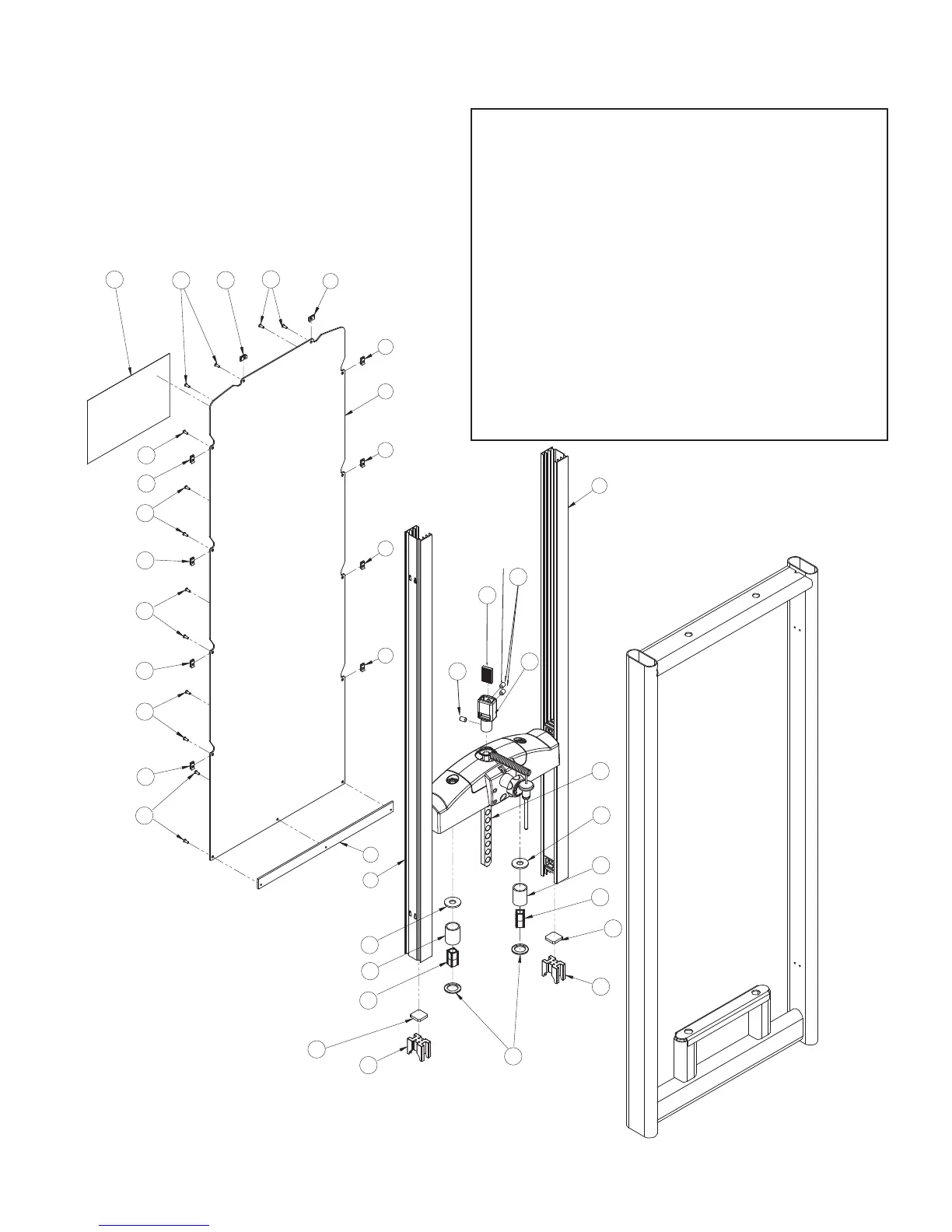

Light Stack Assembly Configuration
12070-020
ITEM QTY PART NO. DESCRIPTION
1 1 11040-006 Top Weight Assembly 10
2 1 12000-375 Panel, Insert
3 1 12000-378 Support
4 2 12000-387 Extrusion, Inc Wt Channel
5 2 12102-330 Insert, Increment Weight
6 2 12102-352 Plastic Insert
7 2 12210-358 Spacer Tube
8 1 3900-441 Decal, Cybex
9 10 HF579000 Panel Fastner, 10-24 U Type
10 2 HS760106 Washer, Flat, 1.75 X .688 X .140 T
11 13 HX570412 BHSCS, 10-24 X .50, SS
12 2 JS497600 Washer, 1.19ID X 1.75 OD X .12 THK
13 2 11040-409 Molded Bumper
14 3 HY740000 Set Screw
15 1 11040-216 Belt Clamp
16 1 11040-301 Belt Clamp insert
