Cybex VR3 12180 Tricep Press Owner’s Manual
Service
Page 6-10
9
5
1
4
5
7
7
7
7
2
2
4
3
8
7
8
8
8
8
7
7
7
8
8
7
7
6
9
11
10
12
10
TOURQUE SET SCREWS
300-350 IN./LBS

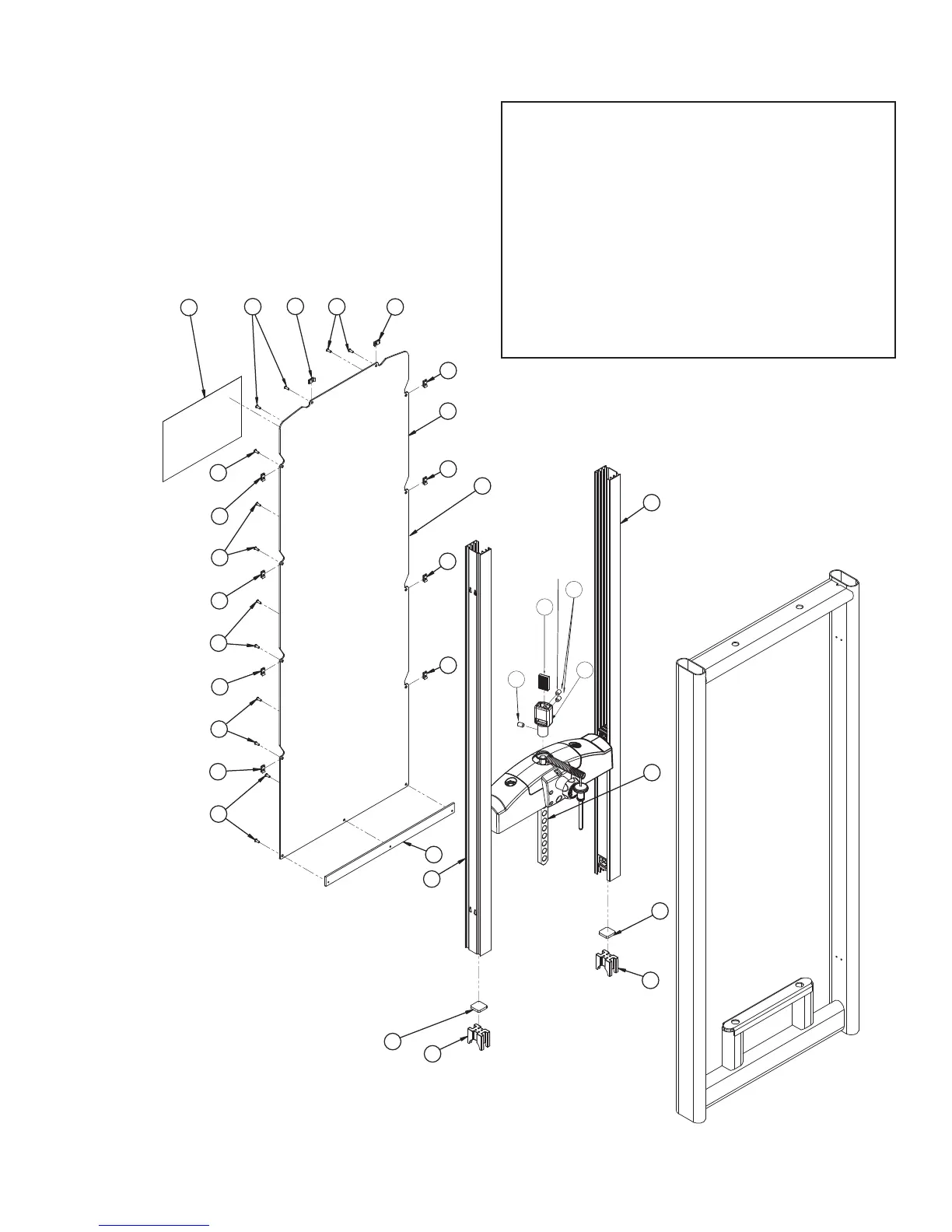

Heavy Stack Assembly Configuration
12070-021
ITEM QTY PART NO. DESCRIPTION
1 1 11040-006 Top Weight Assembly 10
2 1 12000-375 Panel, Insert
3 1 12000-378 Support
4 2 12000-387 Extrusion, Inc Wt Channel
5 2 12102-330 Insert, Increment Weight
6 1 3900-441 Decal, Cybex
7 10 HF579000 Panel Fastner, 10-24 U Type
8 13 HX570412 BHSCS, 10-24 X .50, SS
9 2 11040-409 Molded Bumper
10 3 HY740000 Set Screw
11 1 11040-216 Belt Clamp
12 1 11040-301 Belt Clamp Insert
