17
Installation
Installing the Remote Monitor
Connections on the Vacuum Power Unit
1. Having stripped the exterior casing
of the four-stranded wire, strip 0,5
cm (¼") of each color wire.
2. Connect wires to the power
unit connector. Insert each wire
in the designated inlet, of the
corresponding color. To do so, simply
open the connector, insert the wire,

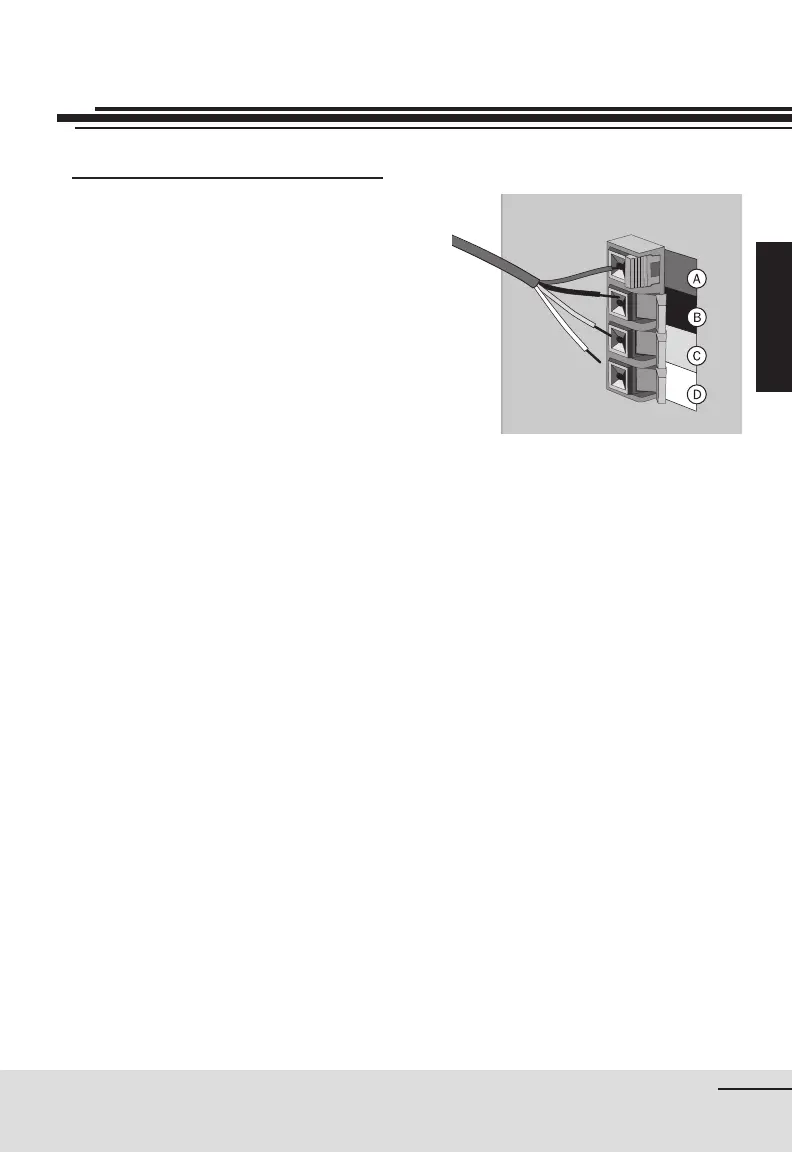

and close (fi gure 15). Repeat for the
remaining 3 wires.
(Optional — DL300 only)
A. Red
B. Black
C. Green
D. Yellow
fi gure 15
