Cyclo Vac Tradition E100 - Muffler Installation

12
Installation
Muffler Installation

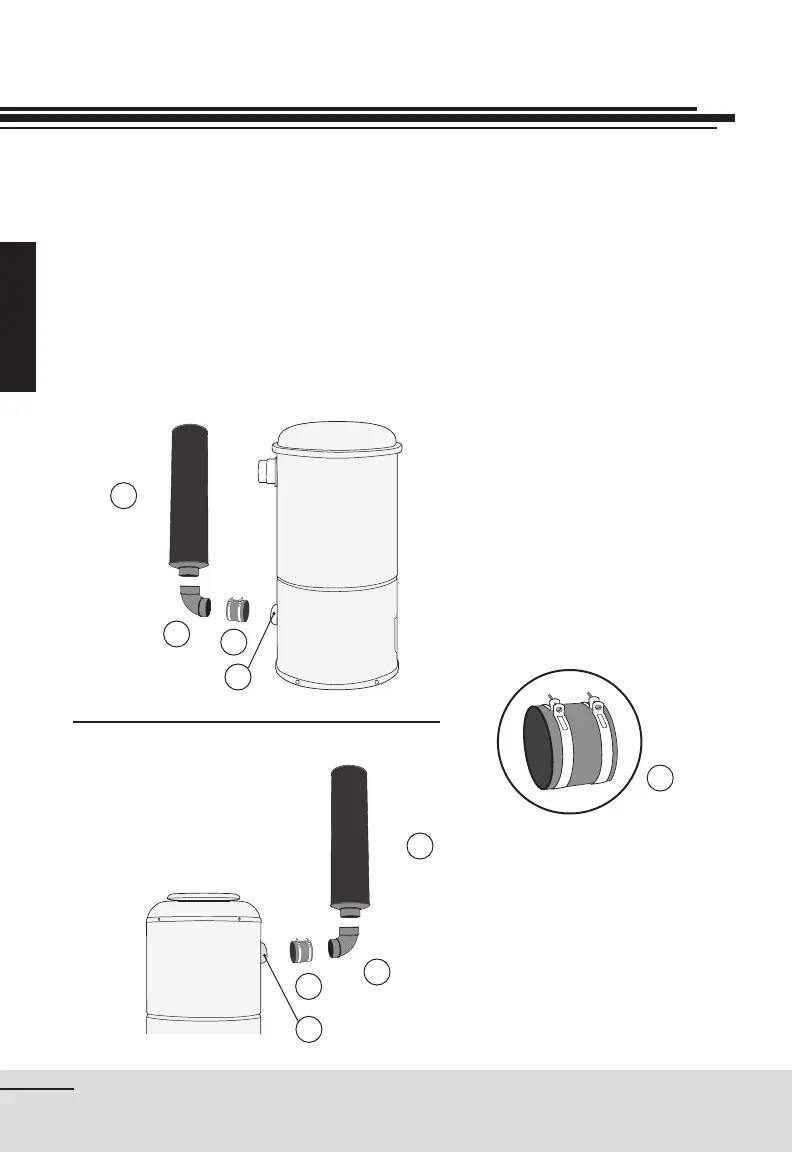

1. Insert the rubber coupling (A) on the air exhaust (D).
2. Using a Phillips (star shape) screwdriver, tighten the clamp collar on the rubber
coupling to ensure adequate sealing.
3. Insert the 90° elbow (B) into the rubber coupling, and tighten the clamp collar.
4. Insert the muf er (C) on the end of the 90° elbow.
E100 MODEL
OTHER MODELS
A. Rubber coupling
B. 90° elbow
C. Muf er
D. Air Exhaust
A
B
C
D
A
D
B
A
C
