8
Installation
Unit Installation

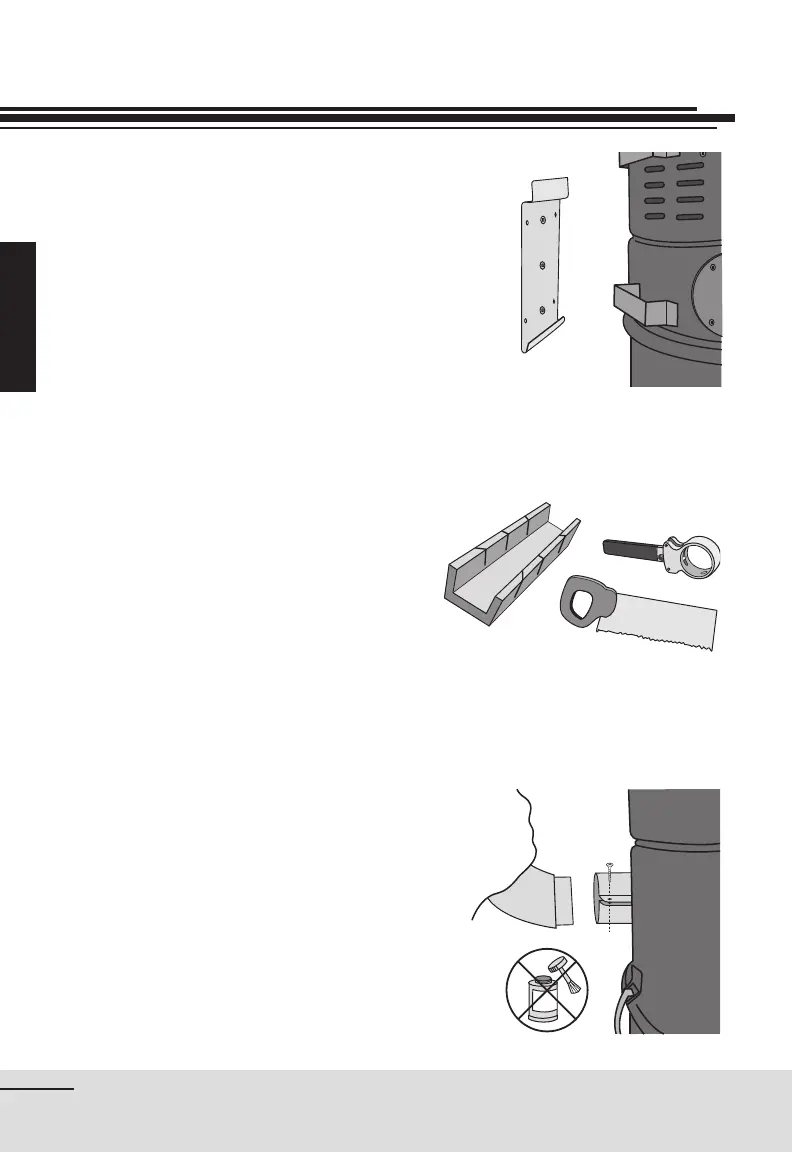

Using the mounting plate provided with
your vacuum cleaner, secure the unit to
the wall (fi gure 1), at a height allowing
easy access for maintenance of the
lters, dirt receptacle and/or bags (see
pages 6 and 7).
The connections to the piping system will
require some basic tools: a mitre box and
small saw or a pipe cutter (fi gure 2). See
pages 9 and 10 for general instructions
pertaining to the preparation of PVC
pipes. To simplify matters, installation
kits, including necessary ttings, pipes,
glue and wiring, as well as a detailed
instructions booklet, are available from
Cyclo Vac service centers.
Contrary to all other connections in the
piping system, do not glue the last fi tting
to your unit. Cyclo Vac central vacuums
are equipped with an adjustable air
intake valve (fi gure 3), which does not
require glue. An air-tight t is achieved
with the screw-type adjustment on the
tting itself.
fi gure 1
fi gure 2
fi gure 3
