Assembly Instruction

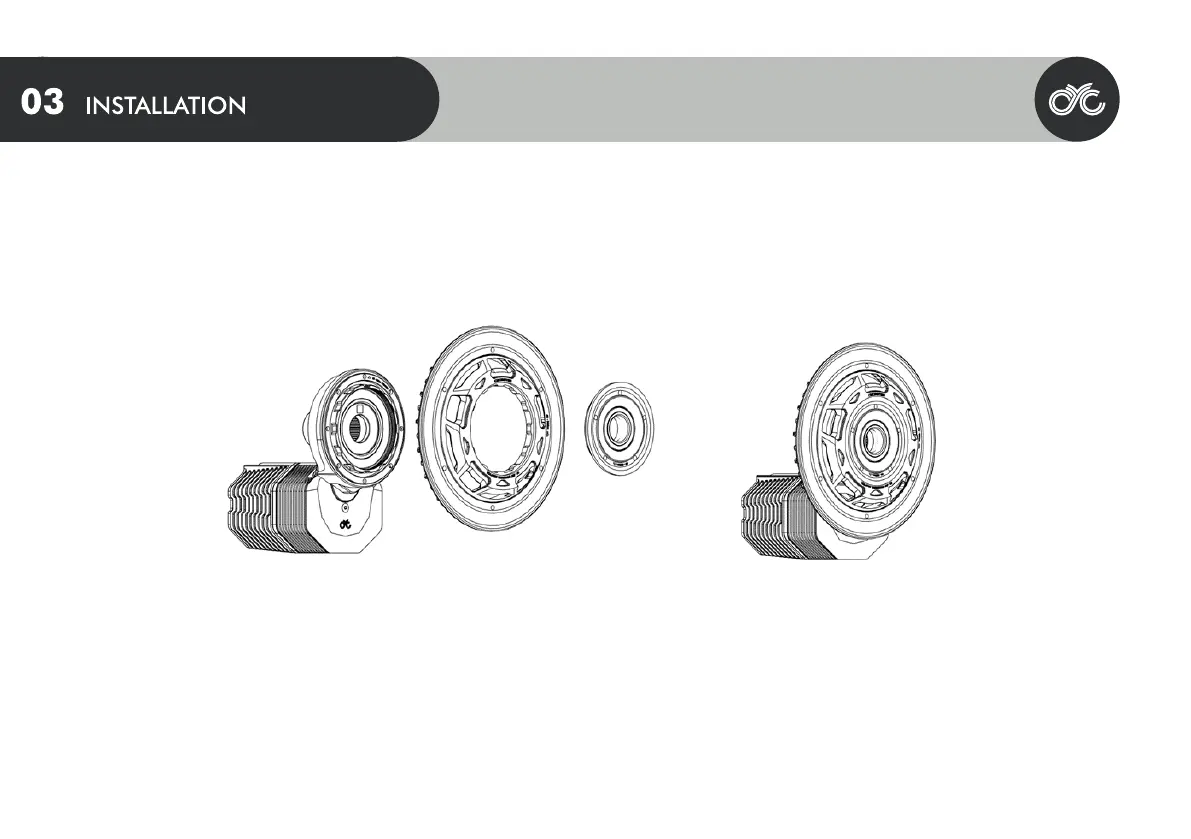

▪ Install the chainring assembly to the motor unit.
▪ The chainring assembly splines onto the gear of the motor unit.
▪ The retaining cap can be threaded on with the provided tool. Please take note of the tightening direction.
13
