CYCMOTOR PHOTON - Peripherals and Battery Setup

04

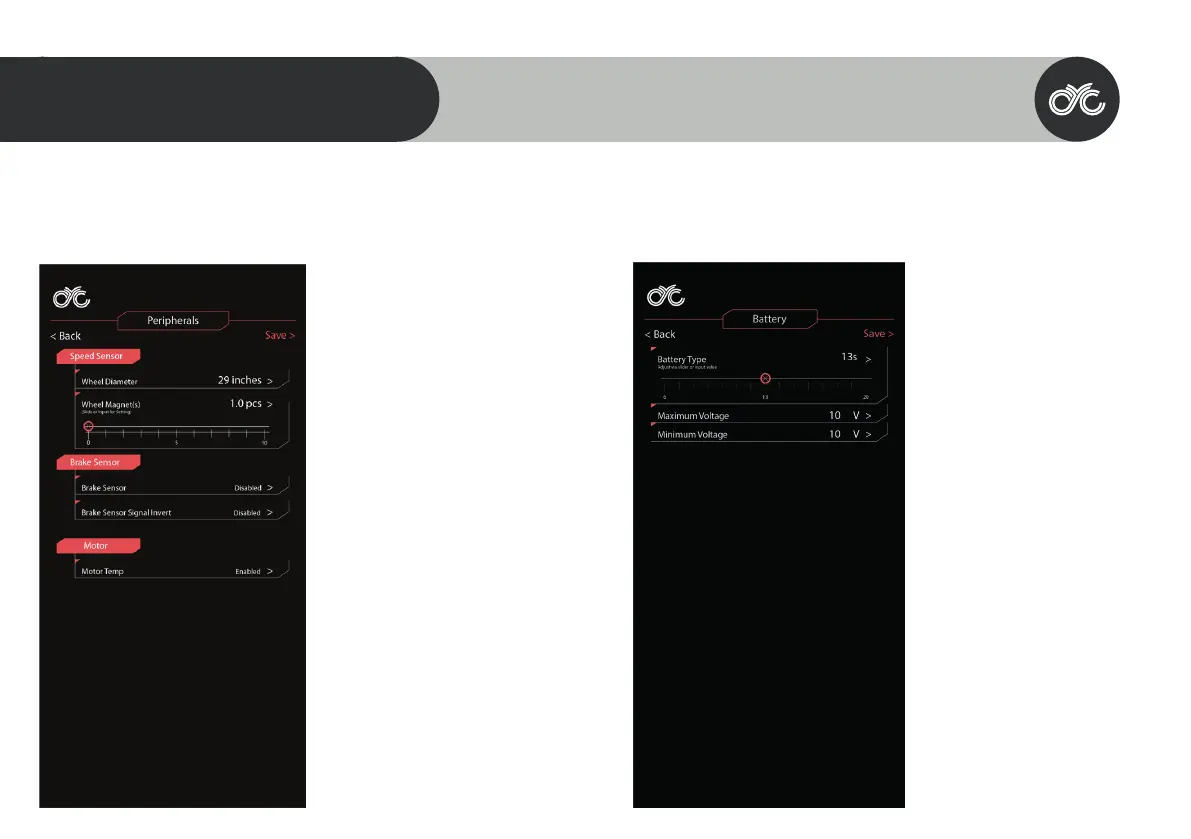

SPEED SENSOR
Wheel Diameter
The wheel diameter can be measured or
calculated. We advise that this number must
be calibrated so that vehicle speed within the
app matches display speed. This will give more
accurate speed liming under dierent modes.
Remember to set the correct wheel size within
the display as well (only applicable to 500c &
750c displays). Kindly refer to your user
manual.
Wheel Magnet
This is the number of magnets in the wheel
that is communicating with the speed sensor.
For more accurate vehicle speed limiting and
measurement, we advise to add more
magnets to the wheel.
BRAKE SENSOR
Brake Sensor Enable
Enable/Disable brake sensors
BRAKE SENSOR SIGNAL INVERT TAB
If you are using brake sensors from a dierent
supplier, you can use this feature to set up your
brake sensors as needed.
MOTOR TEMP
This is an advanced feature and requires a
password from CYC to change. This allows you
to disable your motor temperature sensor.
Contact technical_support@cycmotor.com for
more details.
PERIPHERALS SETUP
SERIES OF CELLS
10s = 36V, 14s = 52V, 20s = 72V
MAXIMUM VOLTAGE
The value the controller will fault when
connecting too high a voltage to the system.
An error will be triggered if a battery is too
high of a voltage.
MINIMUM VOLTAGE
The value the controller will fault when
connecting too low a voltage to the system.
This setting can be used to protect your
battery if too much voltage sag is detected.
BATTERY
31
CYC RIDE CONTROL
