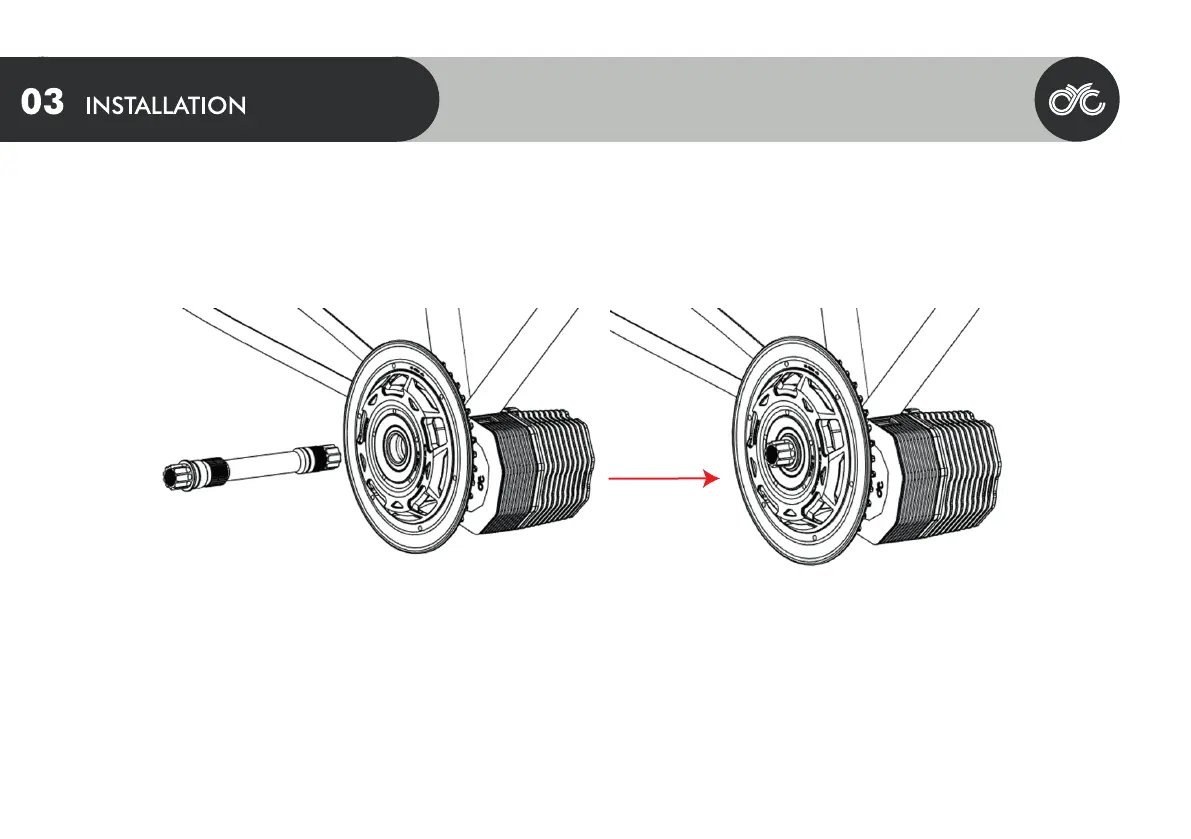

▪ Take the spindle and insert it through the motor assembly until the step on the shaft is in contact with the motor.
20
Assembly Instruction
