47D-Link COVR-2202 || COVR-2200 User Manual

Section 3 - Conguration

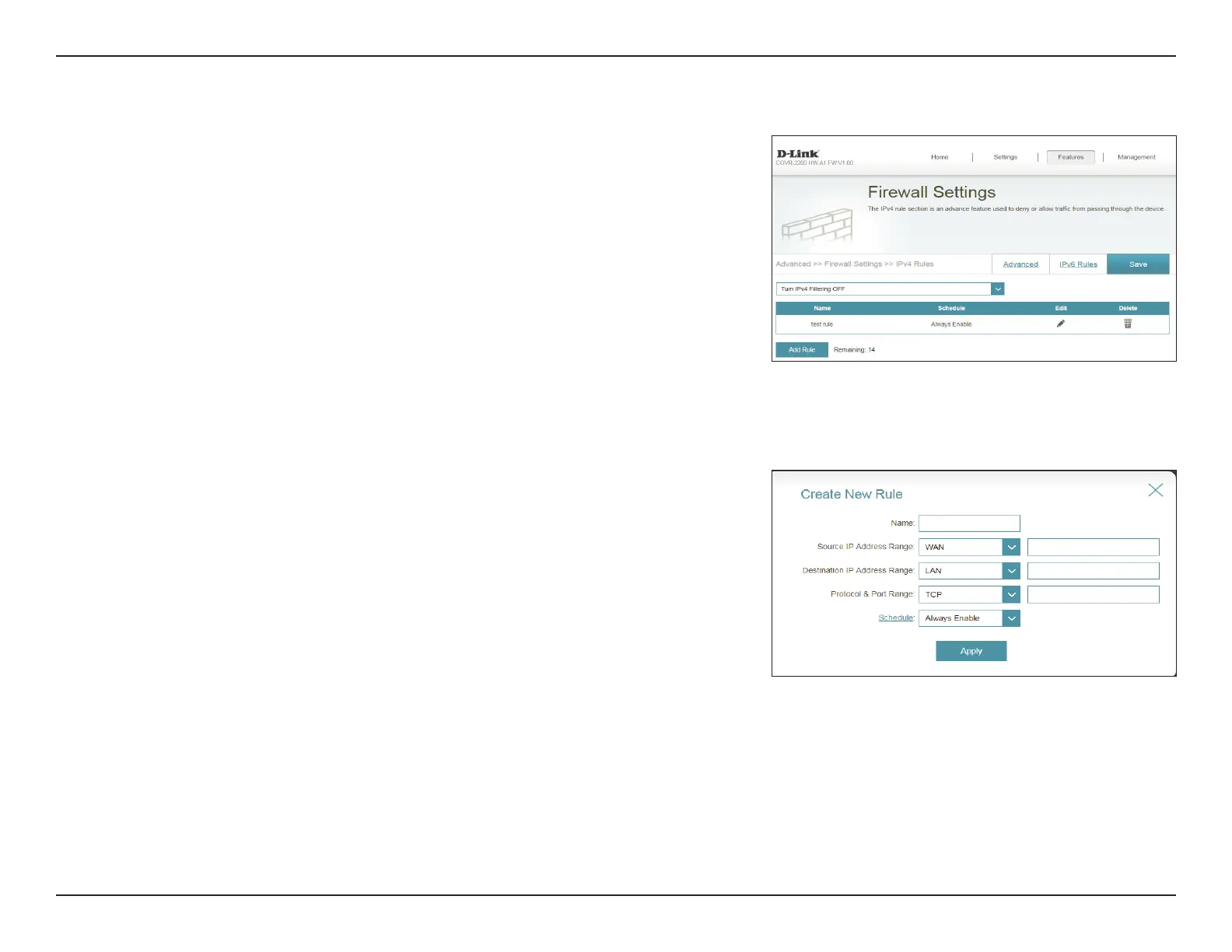

IPv4/IPv6 Rules

The IPv4/IPv6 Rules section is an advanced option that lets you congure what

kind of trac is allowed to pass through the network. To congure the IPv4

rules, from the Firewall Settings page click IPv4 Rules. To congure IPv6 rules,

from the Firewall Settings page click IPv6 Rules. To return to the main Firewall

Settings page, click Advanced.

To begin, use the drop-down menu to select whether you want to ALLOW or

DENY the rules you create. You can also choose to turn ltering OFF.

If you wish to remove a rule, click on its trash can icon in the Delete column. If

you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to

create a new rule, click the Add Rule button. Click Save when you are done. If

you edit or create a rule, the following options will appear:

Name: Enter a name for the rule.

Source IP Address

Range:

Enter the source IP address range that the rule will apply to, and using

the drop-down menu, specify whether it is a WAN or LAN IP address.

Destination IP

Address Range:

Enter the destination IP address range that the rule will apply to, and

using the drop-down menu, specify whether it is a WAN or LAN IP

address.

Protocol & Port

Range:

Select the protocol of the trac to allow or deny (Any, TCP, or UDP)

and then enter the range of ports that the rule will apply to.

Schedule: Use the drop-down menu to select the time schedule that the rule

will be enabled on. The schedule may be set to Always Enable, or

you can create your own schedules in the Schedule section. Refer to

Refer to Schedule on page 56 for more information.

Click Apply when you are done.
