D-Link DAP-1360 Quick Installation Guide

DAP-1360 Quick Installation Guide
Configuring IP Address in OS Windows XP
1. Click the Start button and proceed to the Control Panel > Network
and Internet Connections > Network Connections window.

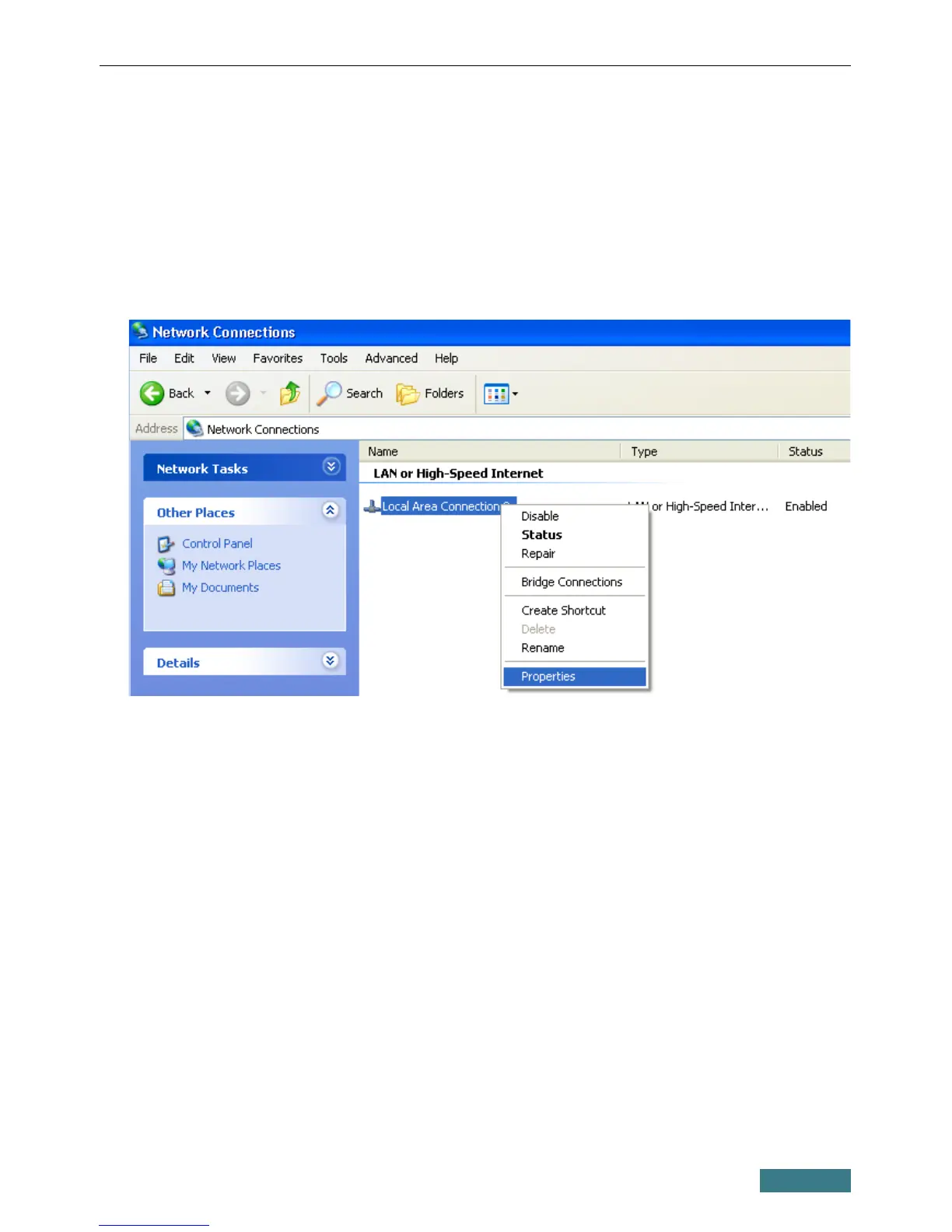

2. In the Network Connections window, right-click the relevant Local
Area Connection icon and select the Properties line in the menu
displayed.
3. In the Local Area Connection Properties window, on the General
tab, select the Internet Protocol (TCP/IP) line. Click the Properties
button.
4

D-Link DAP-1360 Specifications

Power

power input	5V DC/1.2 A
power adapter socket	external power adapter

Operating Environment

operating temperature	0 ˚C to 55 ˚C
storage temperature	10 ˚C to 70 ˚C
operating humidity	10% to 90% non-condensing

Weight and Dimensions

weight	215 grams
dimensions	147.5 x 113 x 31.5 mm
