D-Link DAP-1620 Quick Installation Guide

DAP-1620 Quick Installation Guide

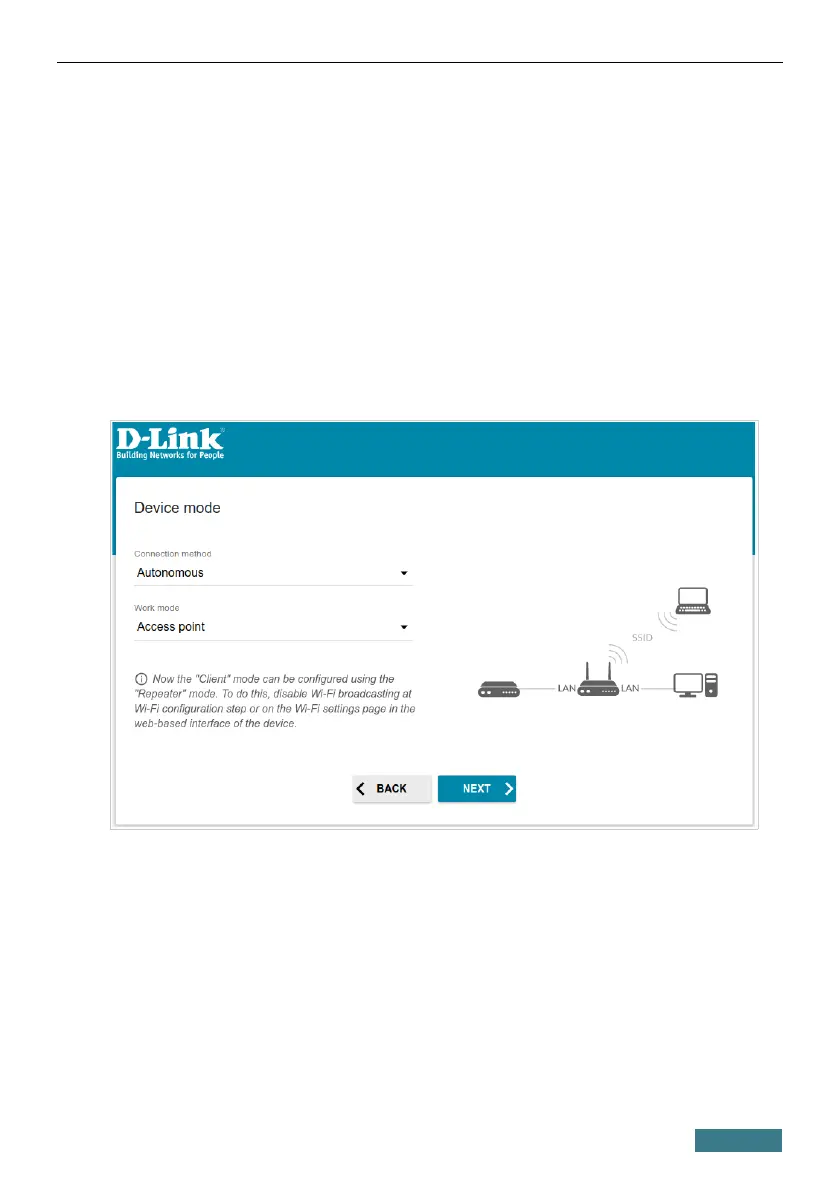

Selecting Operation Mode
Select the needed operation mode and click the NEXT button.
Access Point or Repeater
In order to connect your device to a wired router for adding a wireless network
to the existing local network, on the Device mode page, from the
Connection method list, select the Autonomous value. Then from the
Work mode list, select the Access point value. In this mode you can
change the LAN IP address, set your own settings for the wireless network in
the 2.4GHz and 5GHz bands, and set your own password for access to the
web-based interface of the device.
In order to connect your device to a wireless router for extending the range of
the existing wireless network, on the Device mode page, from the
Connection method list, select the Autonomous value. Then from the
Work mode list, select the Repeater value. In this mode you can change the
LAN IP address, connect your device to another access point, set your own
settings for the wireless network in the 2.4GHz and 5GHz bands, and set your
own password for access to the web-based interface of the device.
22

D-Link DAP-1620 Specifications

General

Type	Network repeater
WPS push button	Yes
Maximum transfer distance	- m
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	WPA, WPA2, WPS
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac
Wi-Fi data rate (max)	1200 Mbit/s
Certification	FCC, IC, CE, C-Tick, CB, UL, Wi-Fi Certified
Product color	White
Ethernet LAN (RJ-45) ports	1
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Antennas quantity	2
Package depth	161 mm
Package width	104 mm
Package height	94 mm
Package weight	300 g
Pallet width	1100 mm
Pallet height (air)	1479 mm
Pallet height (sea)	2055 mm
Pallet gross weight (air)	267630 g
Pallet gross weight (sea)	371900 g
Quantity per pallet (air)	700 pc(s)
Quantity per pallet (sea)	1000 pc(s)
Shipping (inner) case width	229 mm
Shipping (inner) case height	192 mm
Shipping (inner) case length	497 mm
Shipping (inner) case weight	3459 g
Shipping (inner) case net weight	3000 g
Number of cartons per pallet (air)	70 pc(s)
Number of cartons per pallet (sea)	100 pc(s)
Quantity per shipping (inner) case	10 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	59 mm
Width	120 mm
Height	42 mm
Weight	139 g
