DAP-2695 Install Guide 3

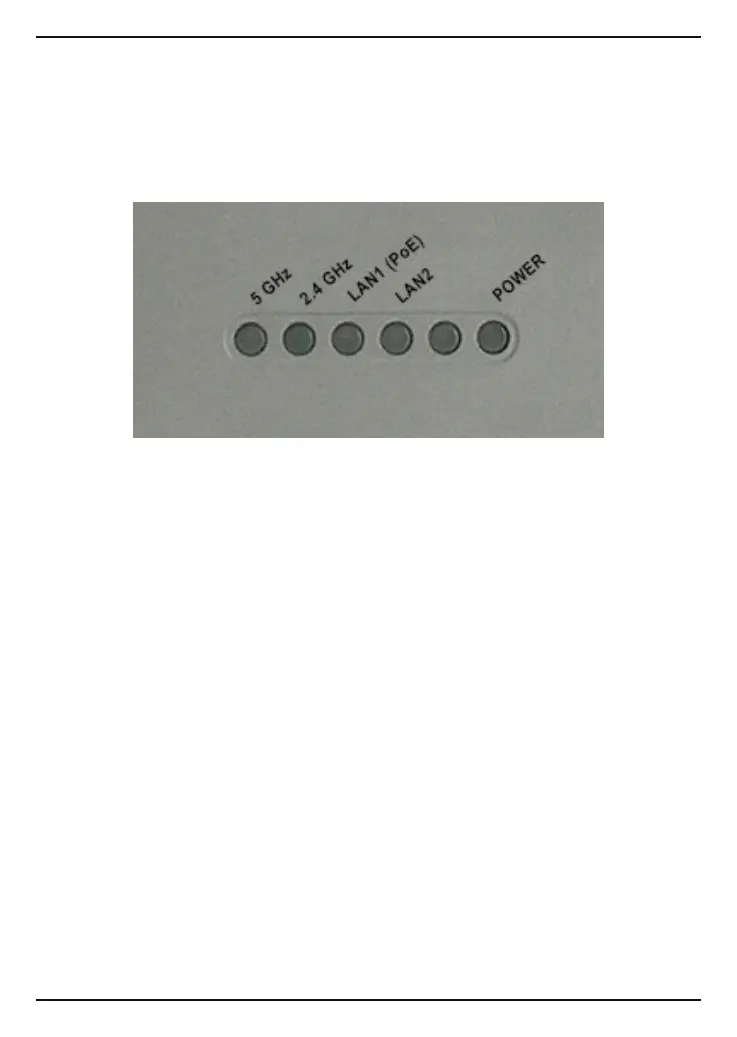

Hardware Overview
LEDs
5 GHz - When lit, the access point is operating at 5GHz. This light will
blink when there is wireless trac.
2.4 GHz - When lit, the access point is operating at 2.4GHz. This light
will blink when there is wireless trac.
LAN1 (PoE) - Solid light when the Ethernet port is connected to a
power over Ethernet (PoE) port, such as a router or switch. The light will
blink when there is trac through LAN port.
LAN2 - Solid light when the Ethernet port is connected to a working
port, such as a router or switch. The light will blink when there is trac
through LAN port.
POWER - The light will blink during boot up. Once solid, the access
point is ready.

Other manuals for D-Link DAP-2695

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DAP-2695 and is the answer not in the manual?

D-Link DAP-2695 Specifications

Operating Environment IconOperating Environment
operating temperature0˚C to 40˚C
storage temperature-20˚C to 65˚C
operating humidity10%~90% (non-condensing)
storage humidity5%~95% (non-condensing)
Power IconPower
operating voltage48V DC +/- 10% for PoE
voltage and current for PoE48V/0.5A
Wireless Specifications IconWireless Specifications
wireless frequency range2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz3x Detachable 4 dBi Omni antennas
antenna type at 5GHz3x Detachable 6 dBi Omni antennas
Weight and Dimensions IconWeight and Dimensions
length198.8 mm
width190 mm
height36.5 mm
