D-Link DAP-2695 Quick Install Guide

6 DAP-2695 Install Guide
Method 2

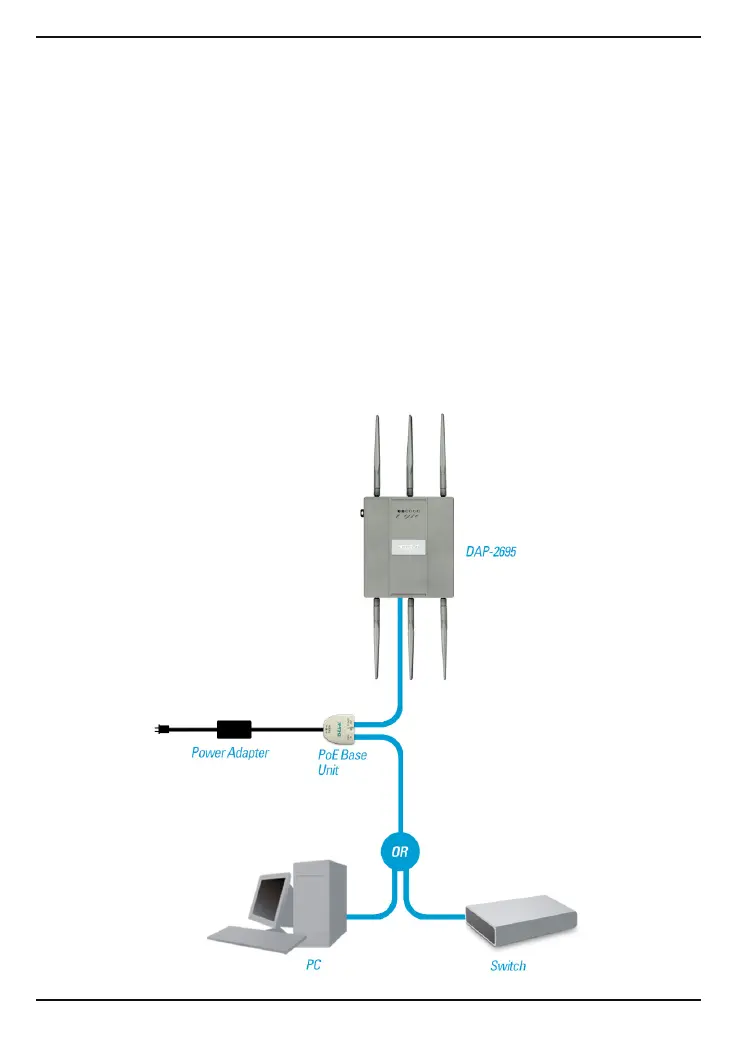

1. Connect one end of an Ethernet cable into the Data In port on the PoE base
unit and the other end into one port on your switch, router, or computer.
2. Connect one end of an Ethernet cable into the P+Data Out port on
the PoE base unit and the other end into the LAN1 (PoE) port on the
Access Point.
3. Use the supplied power adapter. Connect the power adapter to the Power In
receptor on the PoE adapter.
4. Connect the power cable to the power adapter and then connect the other end
into a power outlet.

D-Link DAP-2695 Specifications

Operating Environment

operating temperature	0˚C to 40˚C
storage temperature	-20˚C to 65˚C
operating humidity	10%~90% (non-condensing)
storage humidity	5%~95% (non-condensing)

Power

operating voltage	48V DC +/- 10% for PoE
voltage and current for PoE	48V/0.5A

Wireless Specifications

wireless frequency range	2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz	3x Detachable 4 dBi Omni antennas
antenna type at 5GHz	3x Detachable 6 dBi Omni antennas

Weight and Dimensions

length	198.8 mm
width	190 mm
height	36.5 mm
