D-Link DAP-2695 Quick Install Guide

DAP-2695 Install Guide 7

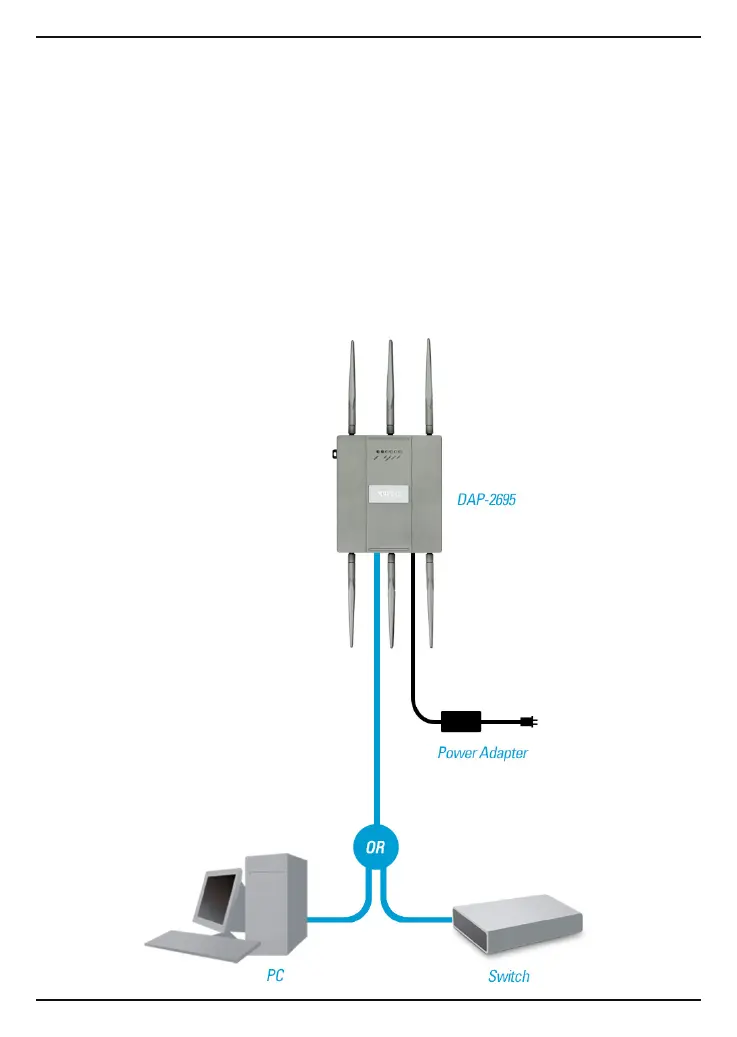

Method 3
1. Connect one end of your Ethernet cable into the LAN2 port on the Access Point
and then connect the other end to a switch, router, or computer.
2. Use the supplied power adapter. Connect the power adapter to the Power
receptor on the Access Point.
3. Connect the power cable to the power adapter and then connect the other end
into a power outlet.

D-Link DAP-2695 Specifications

Operating Environment

operating temperature	0˚C to 40˚C
storage temperature	-20˚C to 65˚C
operating humidity	10%~90% (non-condensing)
storage humidity	5%~95% (non-condensing)

Power

operating voltage	48V DC +/- 10% for PoE
voltage and current for PoE	48V/0.5A

Wireless Specifications

wireless frequency range	2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz	3x Detachable 4 dBi Omni antennas
antenna type at 5GHz	3x Detachable 6 dBi Omni antennas

Weight and Dimensions

length	198.8 mm
width	190 mm
height	36.5 mm
