46D-Link DCS-2210/2230 User Manual
Conguration
Advanced

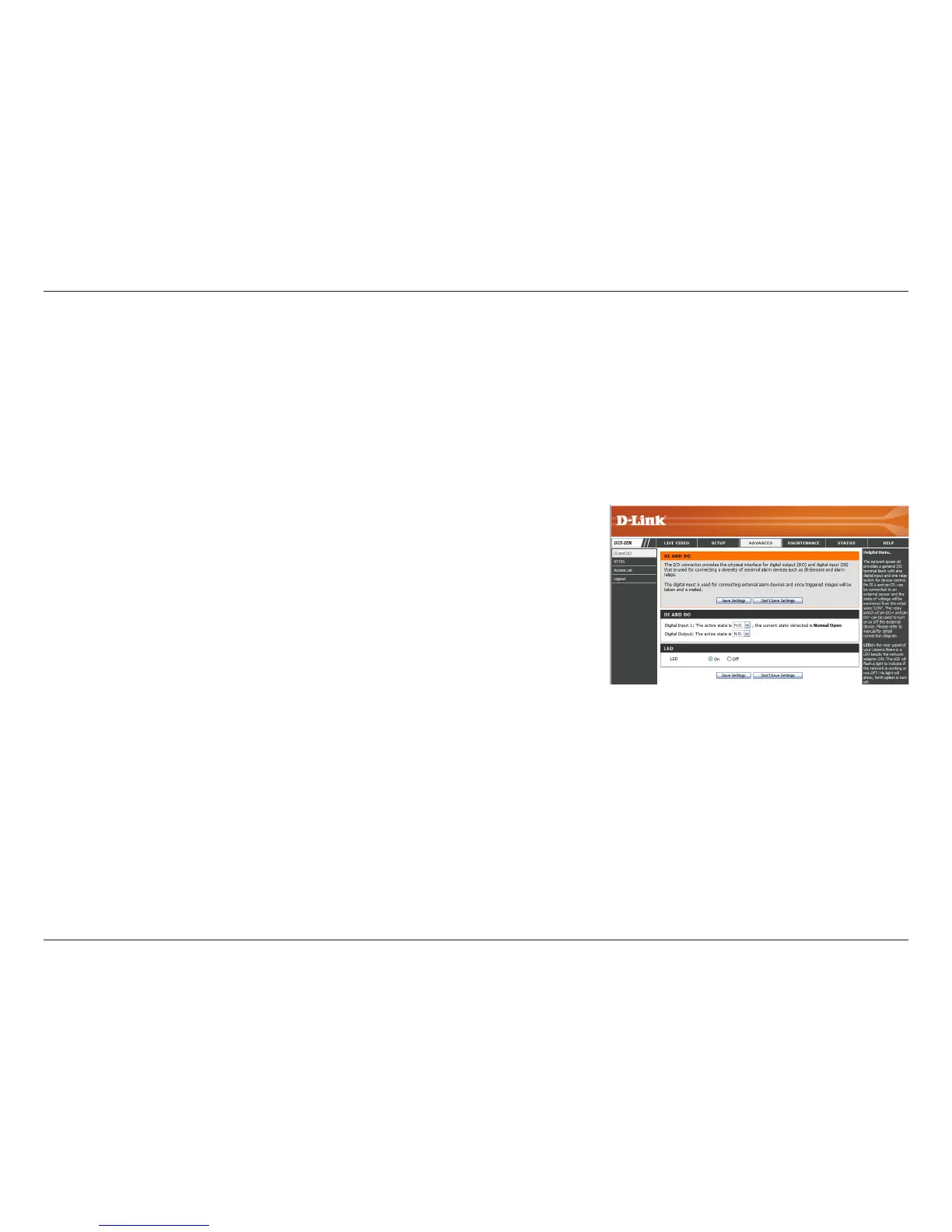

This screen allows you to control the behavior of digital input and digital output devices. The I/O connector provides the physical interface for
digital output (DO) and digital input (DI) that is used for connecting a variety of external alarm devices such as IR-Sensors and alarm relays. The
digital input is used for connecting external alarm devices and once triggered images will be taken and e-mailed. After making any changes, click
the Save Settings button to save your changes.
Digital Input/Output
Select D/I or D/O Mode:
LED:
The camera will send a signal when an event is
triggered, depending upon the type of device connected
to the DI circuit.
N.C. stands for Normally Closed. This means that the
normal state of the circuit is closed. Therefore events are
triggered when the device status changes to "Open."
N.O. stands for Normally Open. This means that the
normal state of the circuit is open. Therefore events are
triggered when the device status changes to "Closed."
You may specify whether or not to illuminate the LED on
the side of the camera.

D-Link DCS-2210 Specifications

General

Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	480p, 720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 960, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \
Effective sensor resolution	2000000 pixels
Optical zoom	- x
Zoom capability	Yes
Security algorithms	HTTPS
Built-in HDD	No
Compatible memory cards	SDHC
LED type	IR
Form factor	Box
Product color	White
Certification	CE, CE LVD, FCC, ICES-003, C-Tick
Placement supported	Indoor
Connectivity technology	Wired
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP/RTSP/RTCP, IP filtering, 3GPP, IGMP, ONVIF
Networking features	Fast Ethernet
Compatible operating systems	Microsoft Windows 7/Vista/XP/2000 Apple MAC OSX 10.3+ Linux, Unix
Compliance industry standards	IEEE 802.3, IEEE 802.3u
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
DC output current	1.25 A
DC output voltage	+5V
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	2 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	38.7 mm
Width	58 mm
Height	95 mm
Weight	69 g
