6D-Link DCS-2210/2230 User Manual
Hardware Overview

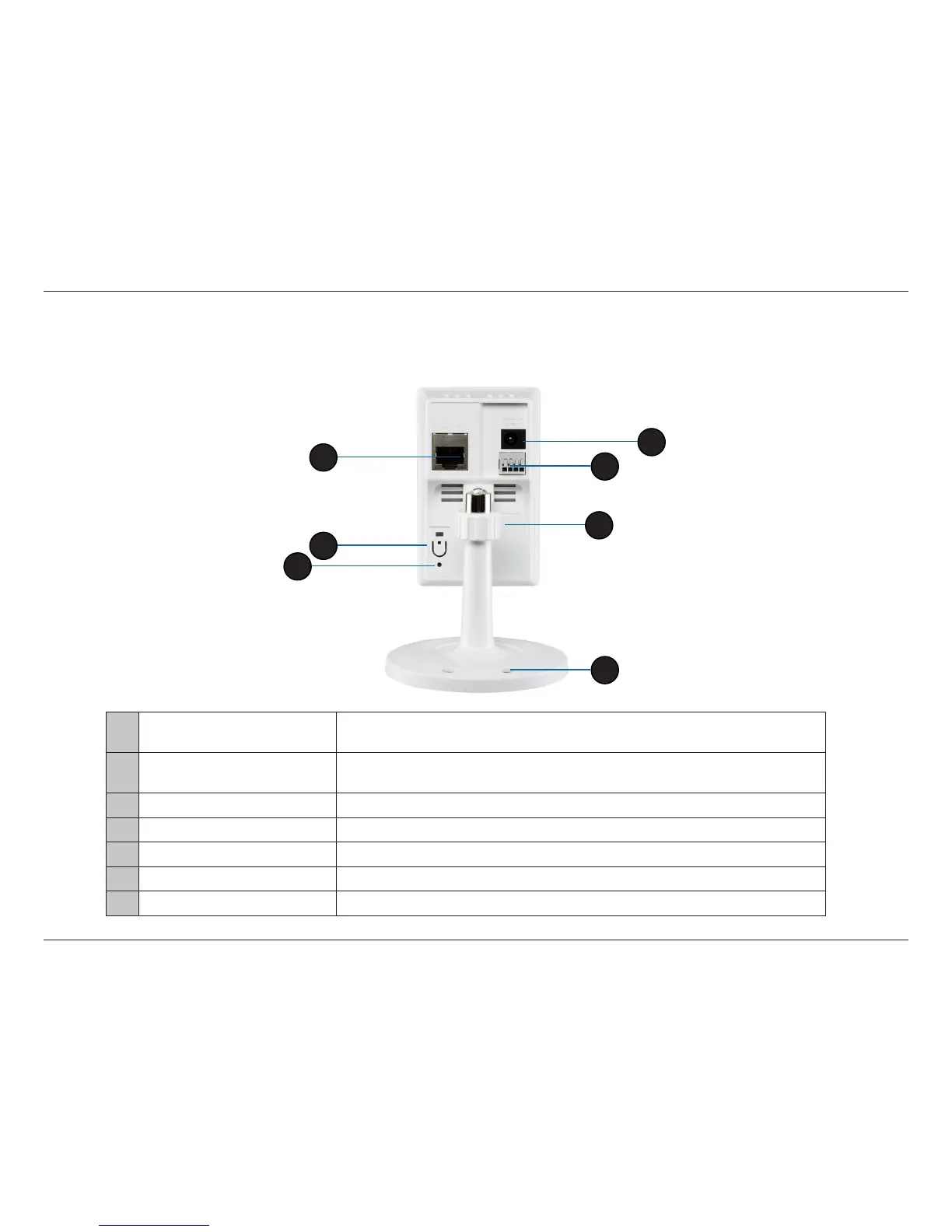

Rear
1 Ethernet
RJ45 connector for Ethernet (DCS-2210 support PoE which can also be used to
power the camera)
2 WPS Button (DCS-2230 only)
Press this button, then press the WPS button on your router to set up a wireless
connection automatically
3 Reset
Press and hold this button for 10 seconds to reset the camera
4 Power Connector
Connects to the included DC 5 V power adapter
5 I/O Connector
I/O connectors for external devices
6 Adjustment Ring Tighten or loosen the adjustment ring to adjust the camera's position
7 WPS LED (DCS2230 only)
Can be used with cable ties to attach camera to a surface
1
2
3
4
5
6
7
