5D-Link DCS-2210/2230 User Manual

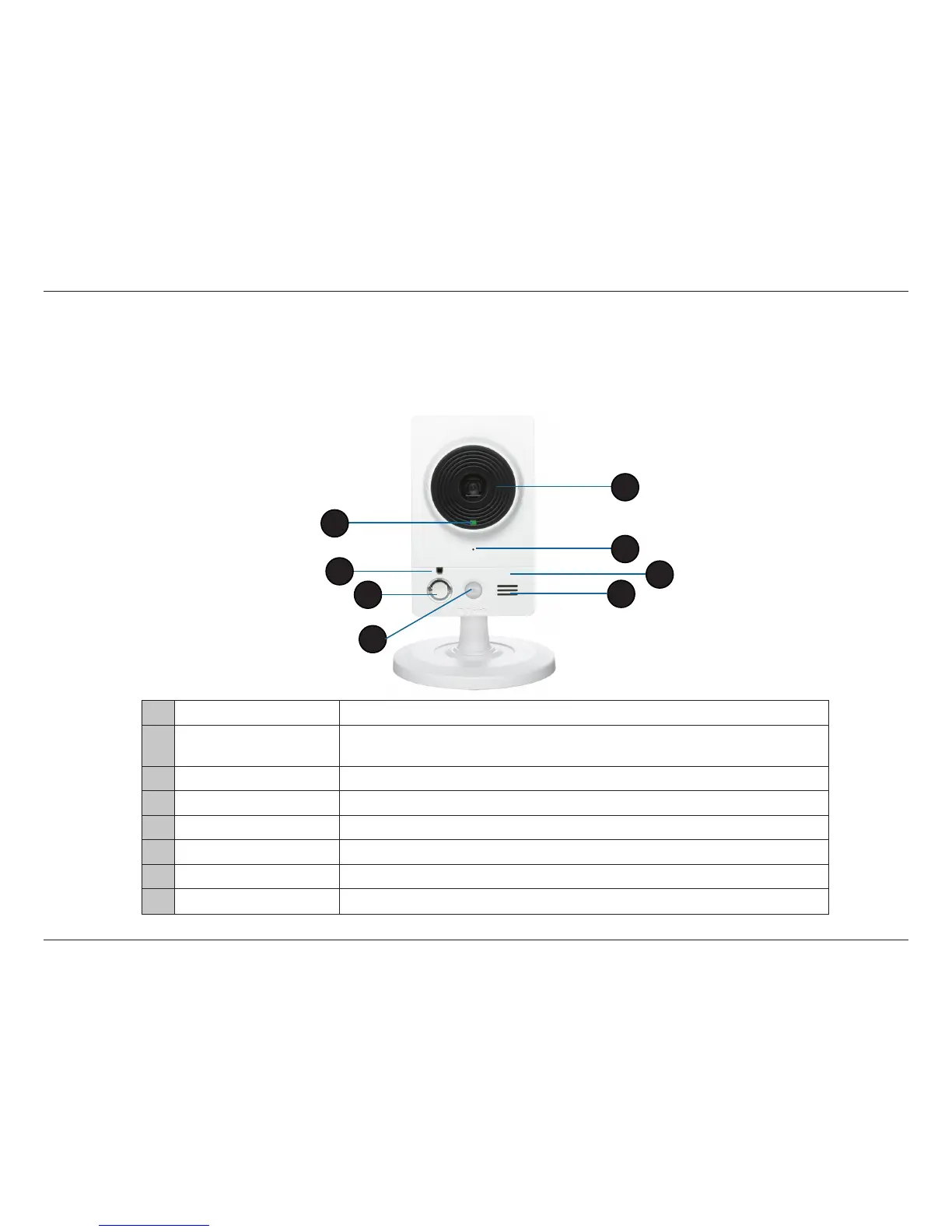

Hardware Overview
Front
Hardware Overview
Hardware Overview
1 Status LED
Indicates the camera's current status
2 ICR Sensor
The IR-Cut Removable sensor monitors lighting conditions and switches between
color and infrared accordingly
3 Infrared LED
Used to illuminate the camera's eld of view at night
4 PIR
Passive Infrared sensor for motion detect
5 Camera Lens Records video of the surrounding area
6 Microphone Records audio from the surrounding area
7 WPS LED (DCS2230 only)
WPS status indicator LED
8
Speaker
Audio output
1
2
3
4
5
6
7
8
