10D-Link DCS-8302LH User Manual
Section 2 - Installation

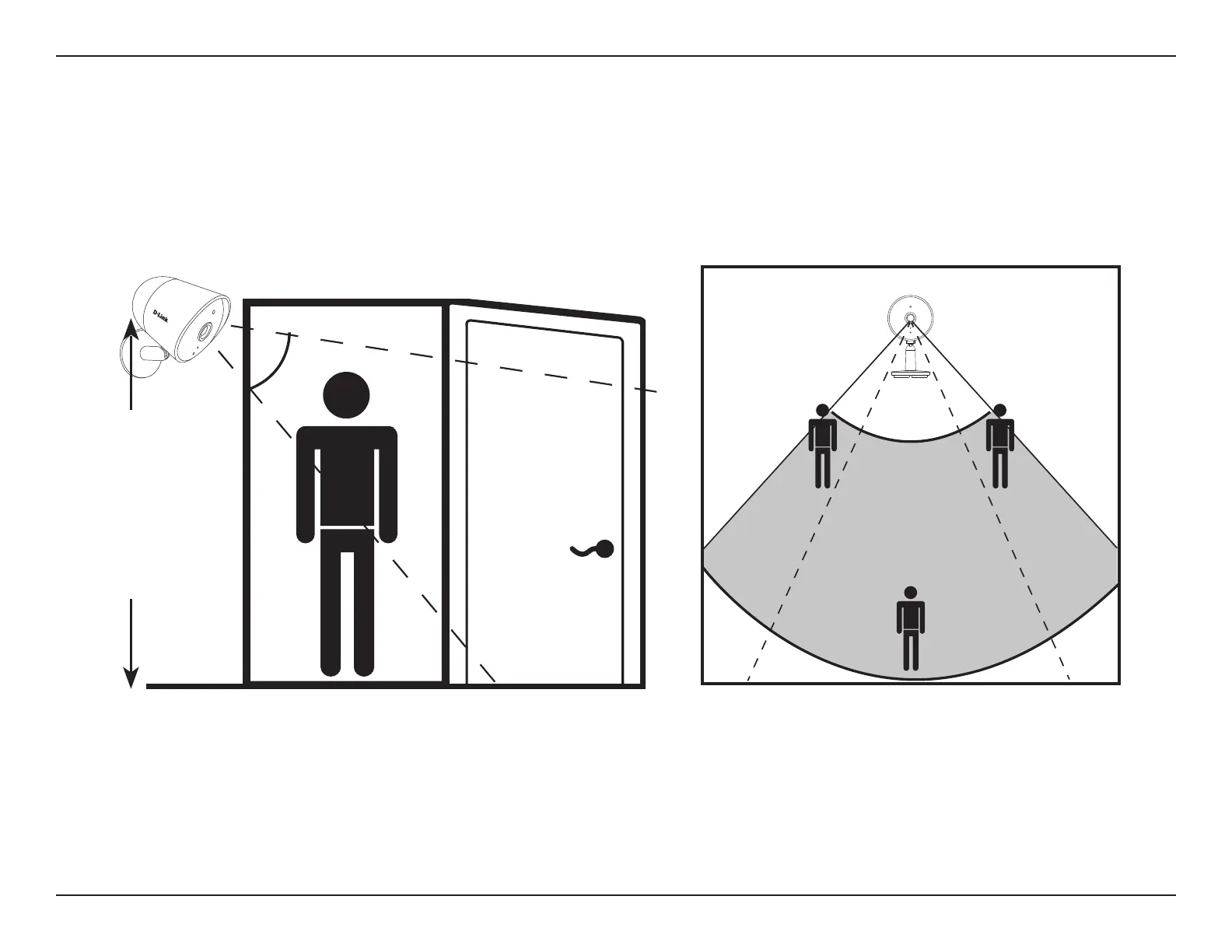

Device Placement
Place the camera 6.5 to 8 feet (2 - 2.5 meters) from the ground. Person Detection works best when the subject is between
6.5 to 23 feet (2 - 7 meters) away from the camera.
6.5 ft.
(2 m)
min
23 ft.
(7 m)
max
6.5 - 8 ft.
(2 - 2.5 m)
65
o
For outdoor installations: This device is designed to be installed under eaves or similarly covered locations, and does not
support inverted installation. Please ensure that the device is installed with the rubber plug pointed downwards towards
the ground, and that it is not installed in an area where it will experience continuous water exposure.
