♦ Group Port Capacity: shows the total number of controllable ports
(includes the UTP ports, AUI ports, an internal management port,
etc.)
♦ Group Hardware Revision: shows the design version of the hub
hardware.
♦ Group Status: shows whether the hub is up or down.
♦ Group Last Oper Change: shows at what time the hub was last
added to or removed from the stack. The format is hh:mm:ss.xx, with
hh representing hours since the master hub was powered on, mm the
minutes, ss the seconds, and xx representing 100ths of a second.
♦ Group ID LED Flash Control: a toggle allowing you to turn Group
ID flashing on or off. You can turn on Group ID flashing for a
particular hub in order to help you find that hub within a large bank of
hubs.

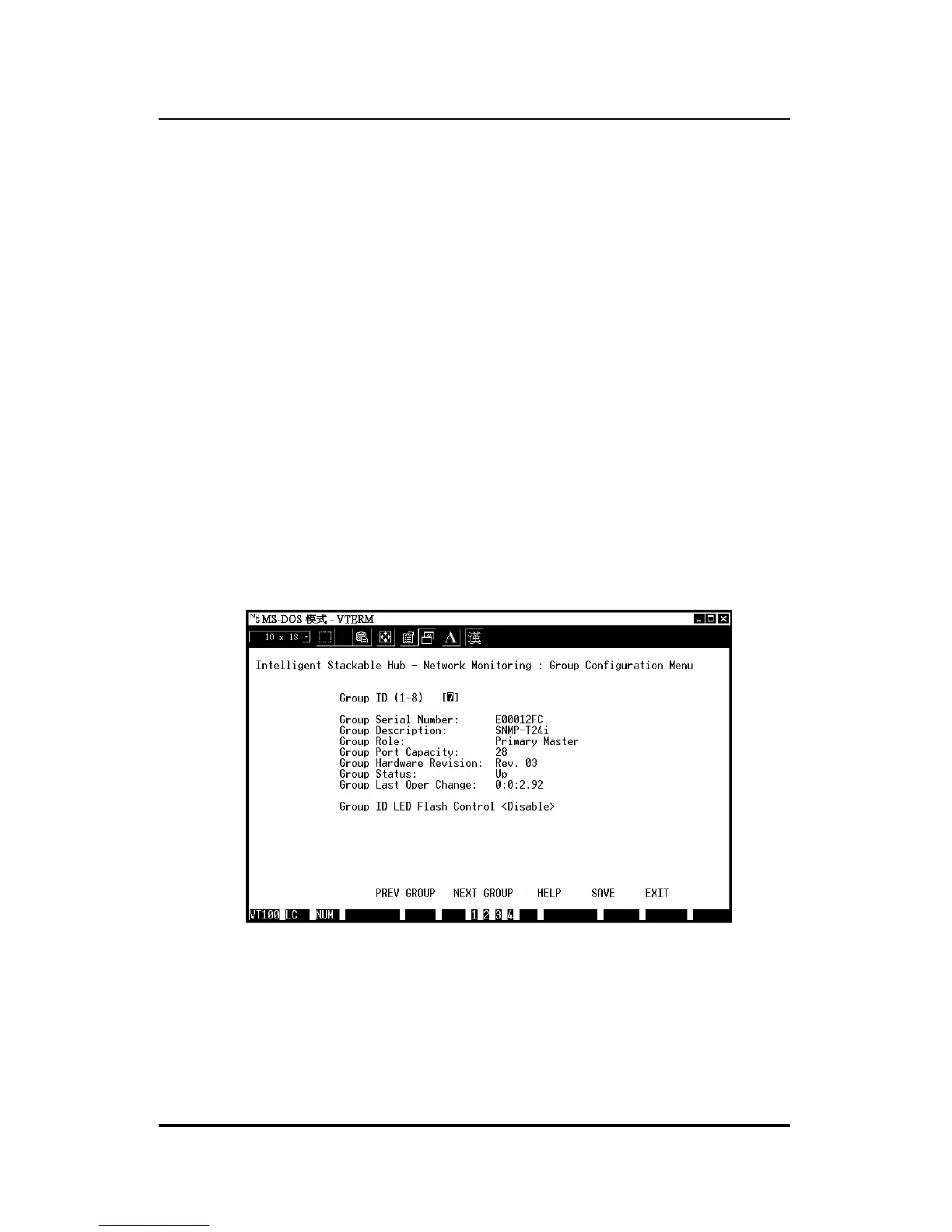

Figure 6 -14 Group Configuration Menu
6-18 Using the Console Interface
