D-Link DE-1824EI - Page 86

10BASE-T Stackable Hubs
D-4 Cables and Connectors
Terminal/PC Serial Por
t
(DTE, DB-9)
Console Port
(DCE, DB-9)
-(9)
RXD (2)
TxD (3)
DTR (4)
SG (5)
DSR (6)
RTS (7)
CTS (8)
DCD (1)
-(9)
RXD (2)
TxD (3)
DTR (4)
SG (5)
DSR (6)
RTS (7)
CTS (8)
DCD (1)

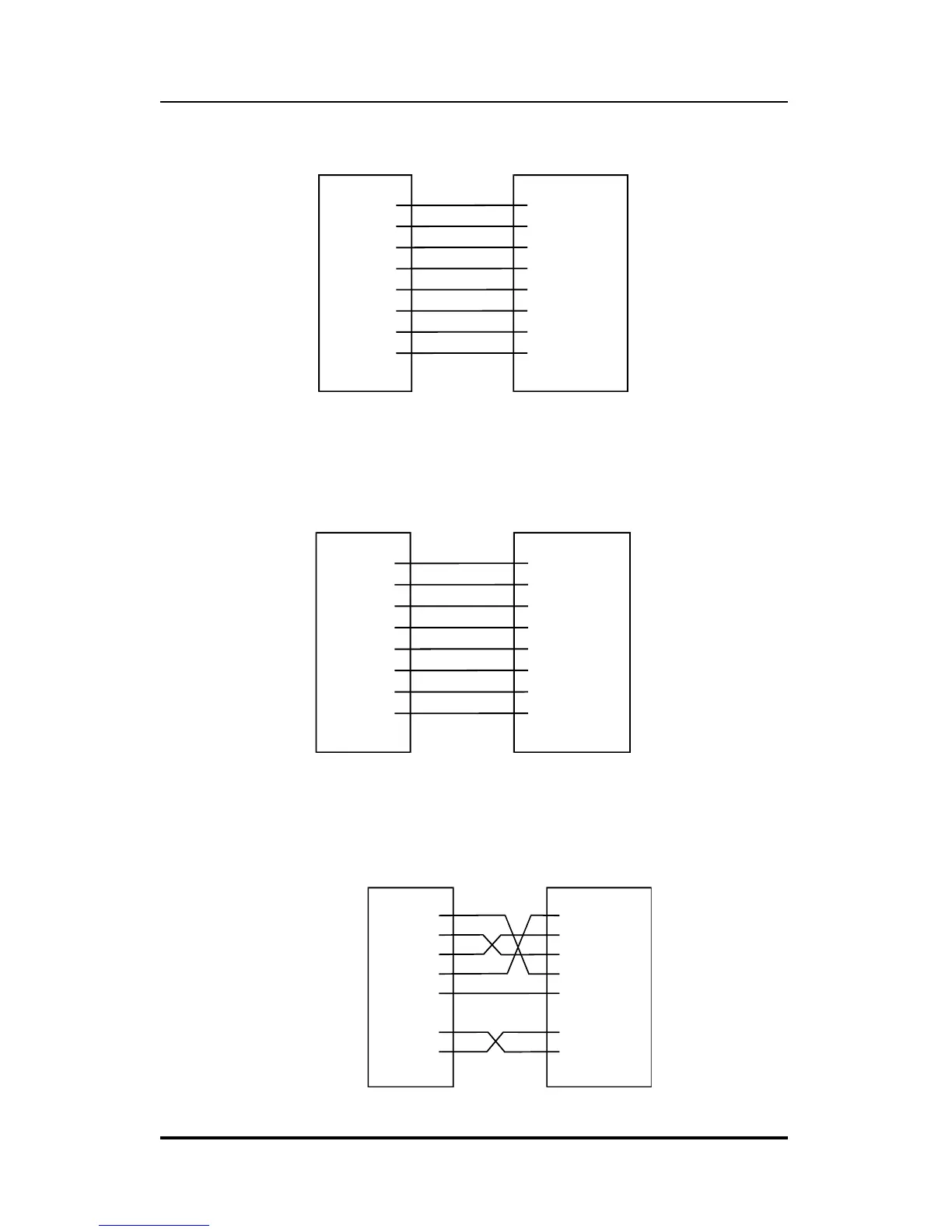

Figure D-4 Local Connection to 9-Pin Serial Port
Terminal/PC Serial Por
t
(DTE, DB-25)
Console Port
(DCE, DB-9)
-(9)
RXD (2)
TxD (3)
DTR (4)
SG (5)
DSR (6)
RTS (7)
CTS (8)
DCD (1)
RXD (3)
TxD (2)
DTR (20)
SG (7)
DSR (6)
RTS (4)
CTS (5)
DCD (8)
Figure D-5 Local Connection to 25-Pin Serial Port
Modem
(DCE, DB-9)
Console Port Connector
(DCE, DB-9)
-(9)
RXD (2)
TxD (3)
DTR (4)
SG (5)
DSR (6)
RTS (7)
CTS (8)
DCD (1)
-(9)
RXD (2)
TxD (3)
DTR (4)
SG (5)
DSR (6)
RTS (7)
CTS (8)
DCD (1)
Figure D-6 Remote (Modem) Connection to 9-Pin Serial Port
