10/100 NWay Ethernet/Fast Ethernet Switch User’s Guide
14 Connecting The Switch

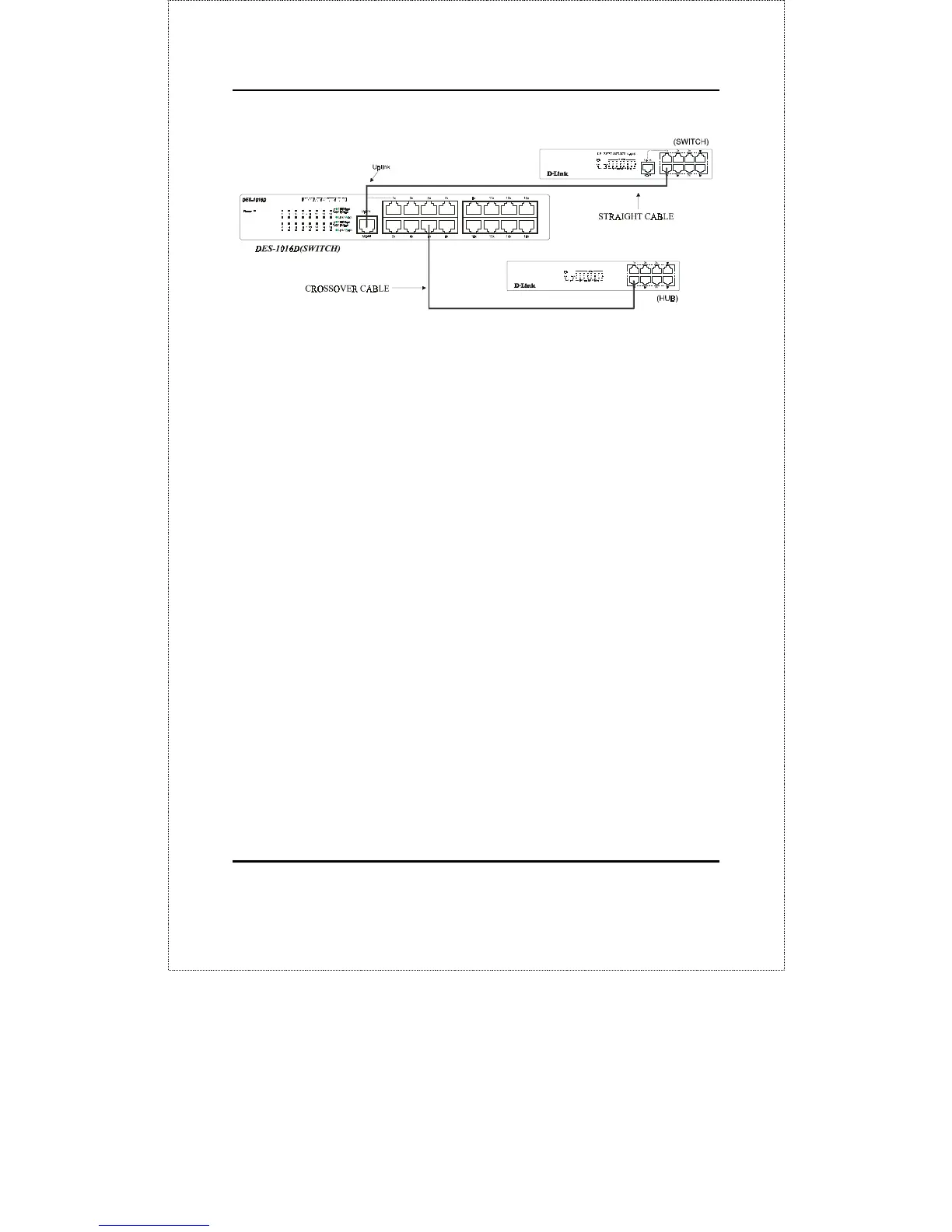

Figure 4.3 10/100 NWay Ethernet/Fast Ethernet Switch connected to
a Hub without Uplink (MDI-II) port using the straight or crossover
cable option
Using straight cable
When using straight cable, the connection can be made from the
Uplink (MDI-II) port of the Switch to any port of the Hub.
Using crossover cable
When using crossover cable, the connection can be made from any
MDI-X ports of the Switch to any port of the Hub.
