4 Configuration DGS-1210 series Metro Ethernet Managed Switch User Manual
1
1
2
2
3
3

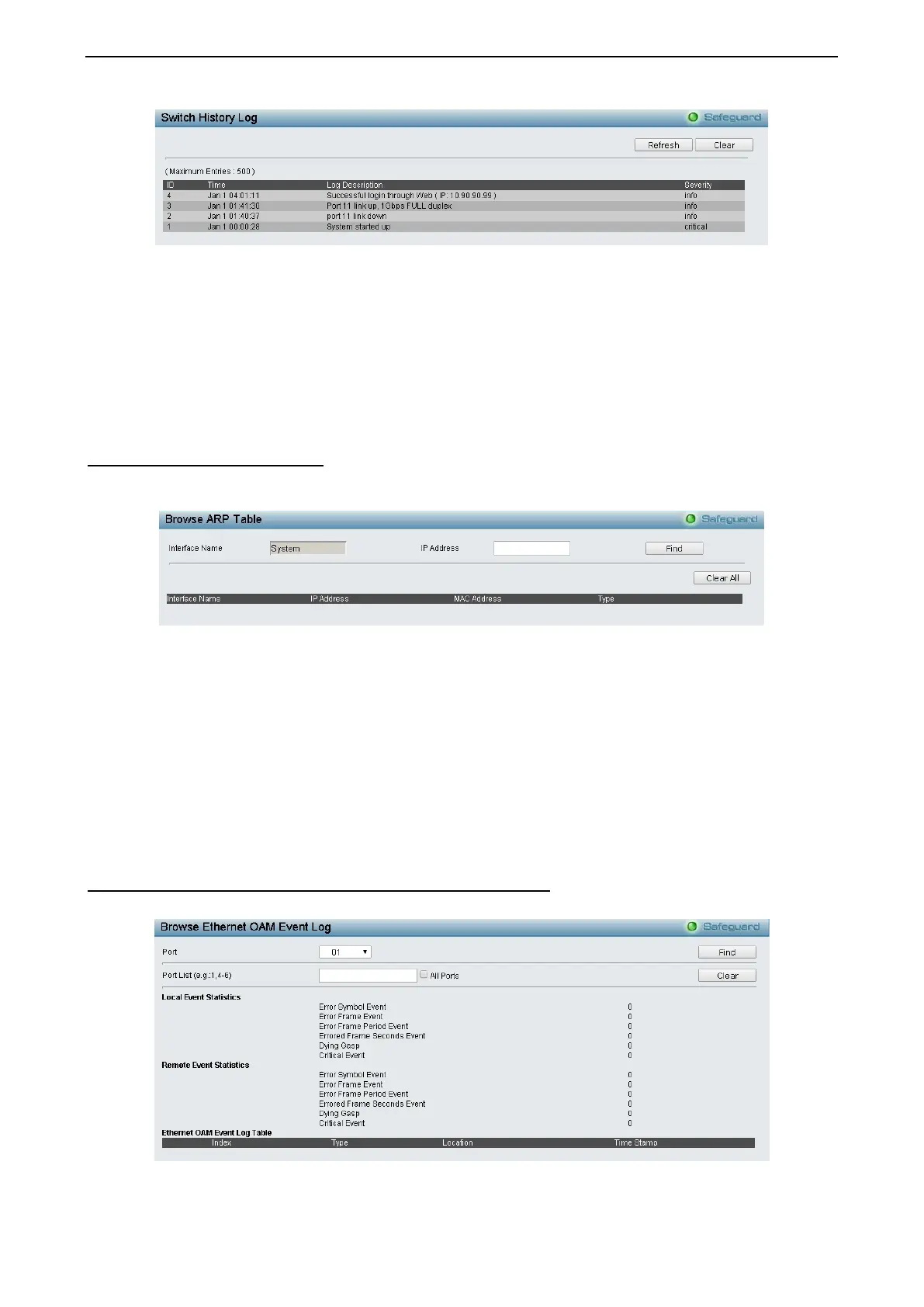

Figure 4.189 - Monitoring > System Log
ID: Displays an incremented counter of the System Log entry. The Maximum entries are 500.
Time: Displays the time in days, hours, and minutes the log was entered.
Log Description: Displays the description of event recorded.
Severity: Displays a severity level of the event recorded.
Click Refresh to renew the page, and click Clear to clean out all log entries.
Monitoring > Browse ARP Table
The Browse ARP Table page provides information regarding ARP VLANs, including which IP address was
mapped to what MAC address. To clear the ARP Table, click Clear All.
Figure 4.190 - Monitoring > Browse ARP Table
Click Find, The table updates and displays the values required.
Interface Name: Defines the name of ARP mappings.
IP Address: Defines the station IP address, which is associated with the MAC address.
MAC Address: Displays the MAC address associated with the IP address.
Type: Indicates how the MAC was assigned. The possible values are:
Dynamic – Indicates that the MAC address is dynamically created.
Static – Indicates the MAC address is a static IP address.
Port: Defines the ARP mapping ports.
Monitoring > Ethernet OAM > Browse Ethernet OAM Event Log
The Browse Ethernet OAM Event Log page displays the ports Ethernet OAM event log information.
Figure 4.191 - Monitoring > Ethernet OAM > Browse Ethernet OAM Event Log
