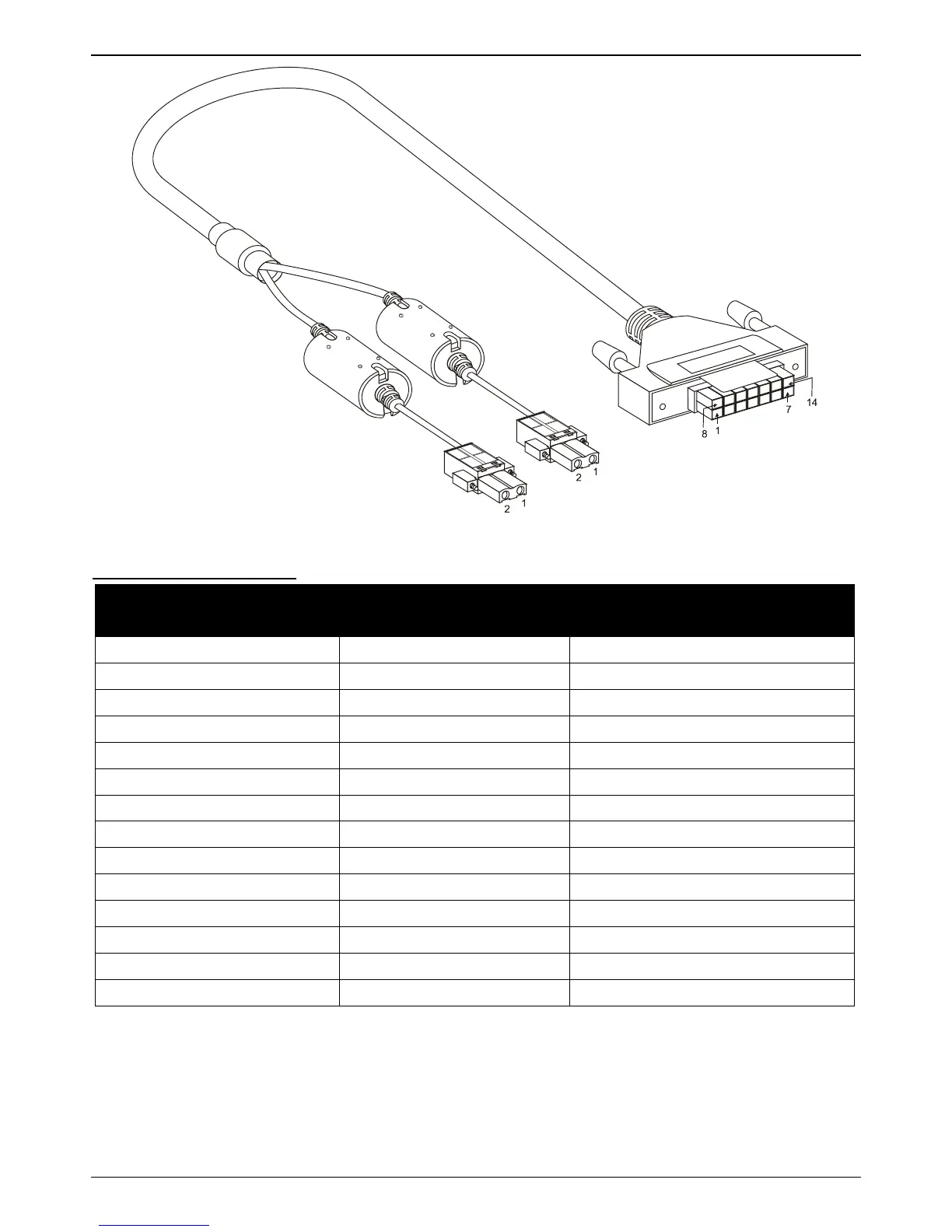

Figure B–3 DPS-CB150-2PS Cable
RPS Cable PIN Assignments:
RPS 14-pin to two 2-pin DC Power Cable Pin Assignments
Pin
2-pin
14-pin
1
GND
GND
2
+12V
NC
3
-
+12V
4
-
+12V
5
-
+12V
6
-
+12V
7
-
GND
8
-
GND
9
-
Power Good
10
-
Power Present
11
-
NC
12
-
NC
13
-
GND
14
-
GND
