D-Link DHP-W310AV User Manual

18D-Link DHP-W310AV User Manual
Section 3 - Conguration

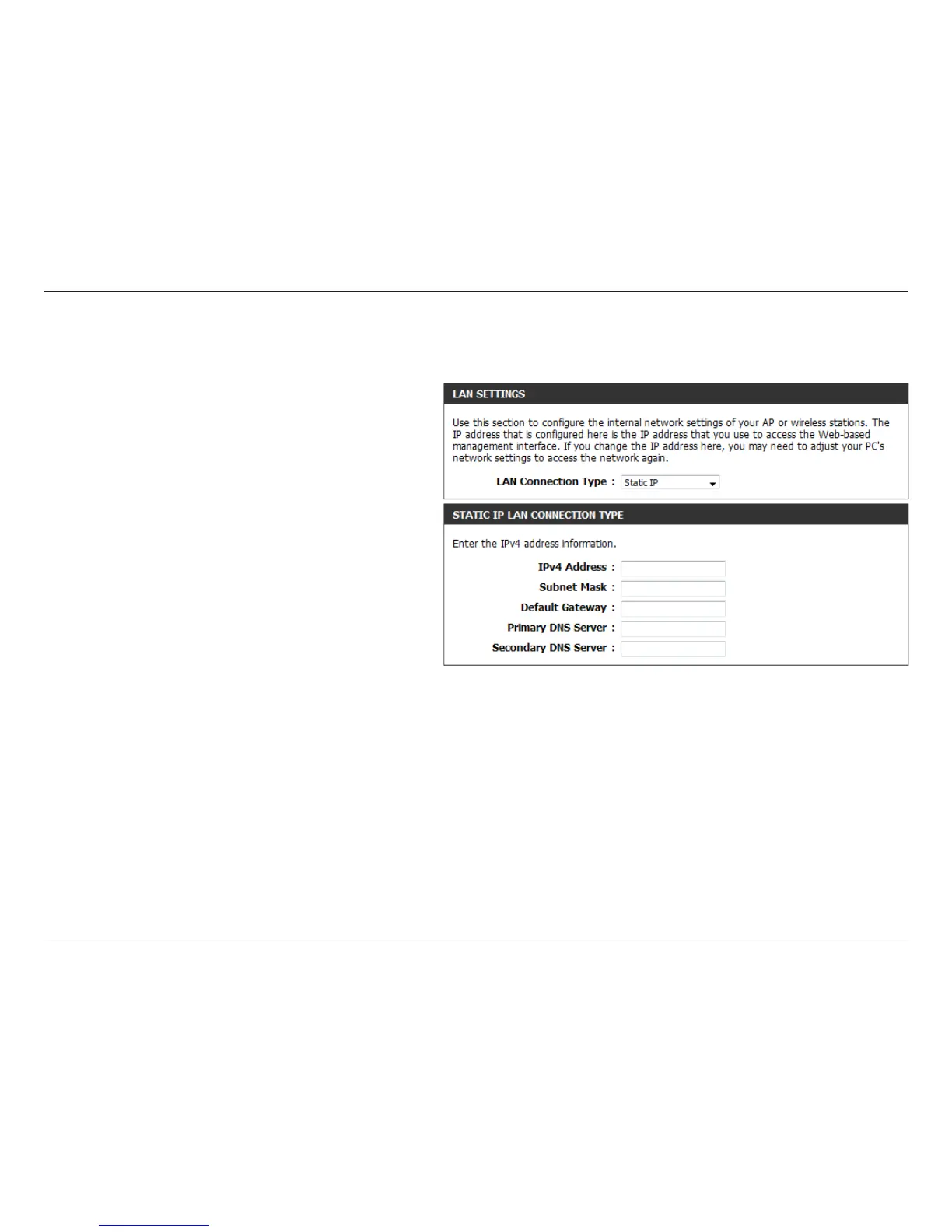

Select Static IP to manually enter the IP address, subnet mask, and default gateway addresses.
LAN Connection
Type:
IP Address:
Subnet Mask:
Default Gateway:
DNS Server:
Save Settings:
Select Static IP from the drop-down menu.
Enter the IP address of the DHP-W310AV.
The default IP address is 192.168.0.50. If you
change the IP address, once you click Apply,
you will need to enter the new IP address in
your browser to return to the conguration
utility. You can also connect with the device
name. (See previous page.)
Enter the Subnet Mask.
Enter the Gateway. This is usually the LAN or
internal IP address of your router.
This is the Domain Name Server that looks
up addresses on the Internet, you may have a
specic one you need to connect to.
Click Save Settings to save and activate the
new changes.
LAN Settings - Static IP

D-Link DHP-W310AV Specifications

General

Wi-Fi	No
Modulation	OFDM
Power plug	-
Ethernet LAN	Yes
PowerLine standard	HomePlug AV
Security algorithms	128-bit AES
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	200 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Certification	FCC, CE EMC B, UL, CE LVD
Product color	White
LED indicators	LAN, Power
Current	0.1 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	4 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	42.4 mm
Width	61 mm
Height	68 mm
Weight	125.6 g
