D-Link DI-701 iShare User Manual

- 10 -
a
VDC IN
Connects the power adapter plug.
b
Console
Connects an RS-232 serial cable to your computer for
• Configuring from terminal programs
• Firmware upgrade.
c
Global
Connects to Ethernet port on Cable Modem, ADSL Modem or
Ethernet Hub for Internet Access.
d
Local
Connects to the Ethernet Hub/Switch on LAN.

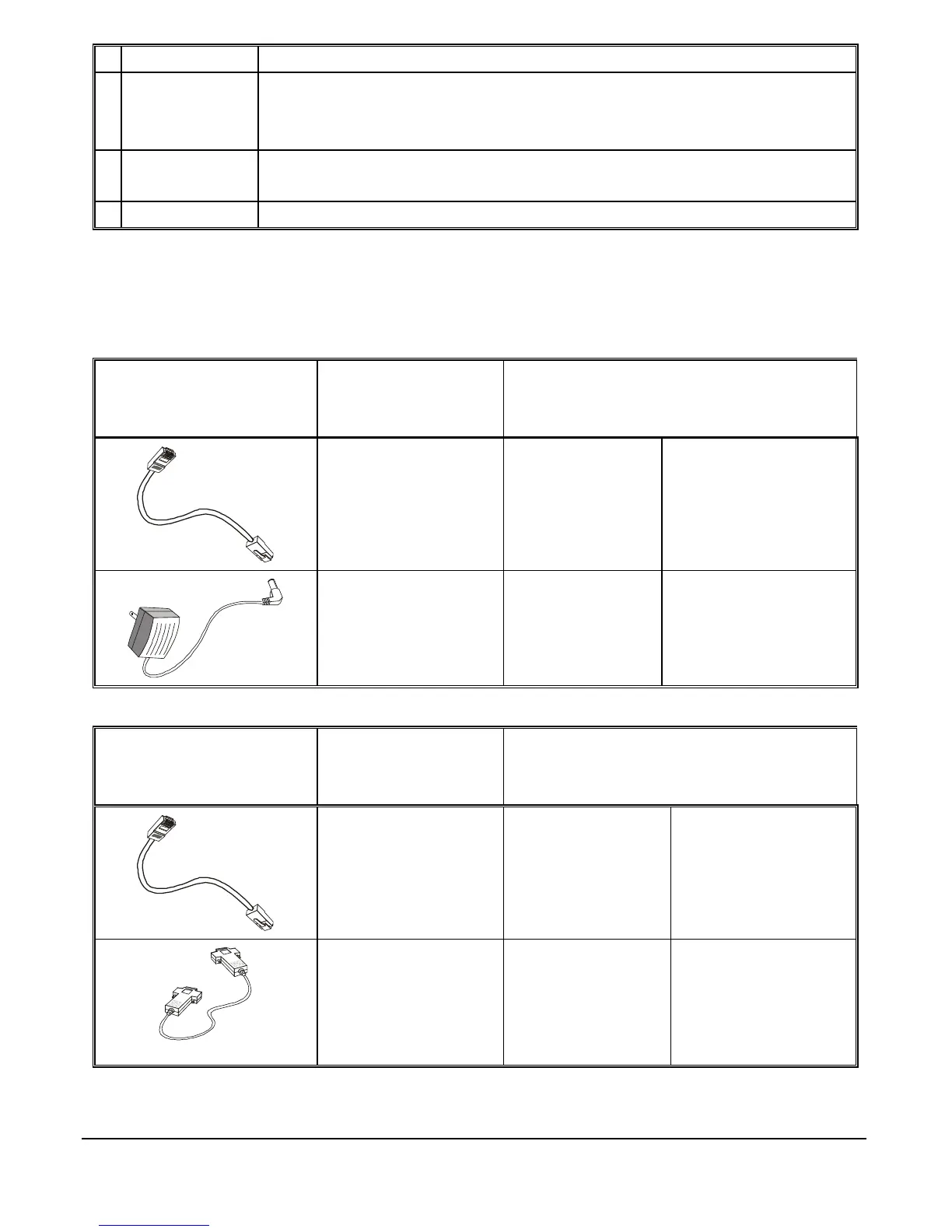

Hardware Requirements
Table 2: Essential Hardware
Item Included in
Standard package
Description Connections
From To
UTP Ethernet
cross-over cable
Global Port RJ-45 port of
DI-701 iShare
modem
Power adapter VDC IN Port Wall outlet
Self-Prepared Items Description Connections
From To
CAT3 or CAT5
UTP Ethernet
straight cable
Local Port HUB or Switch
RS-232 cable
(For terminal
program
configuration only)
Console Port COM port
