D-Link DI-701 iShare User Manual

- 9 -
HARDWARE INSTALLATION
Parts Names and Functions
LED Indicators on the Front Panel Ports on the Rear Panel
123
4
5
6
7
VDC IN
Console
Global
Local
ab
c
d

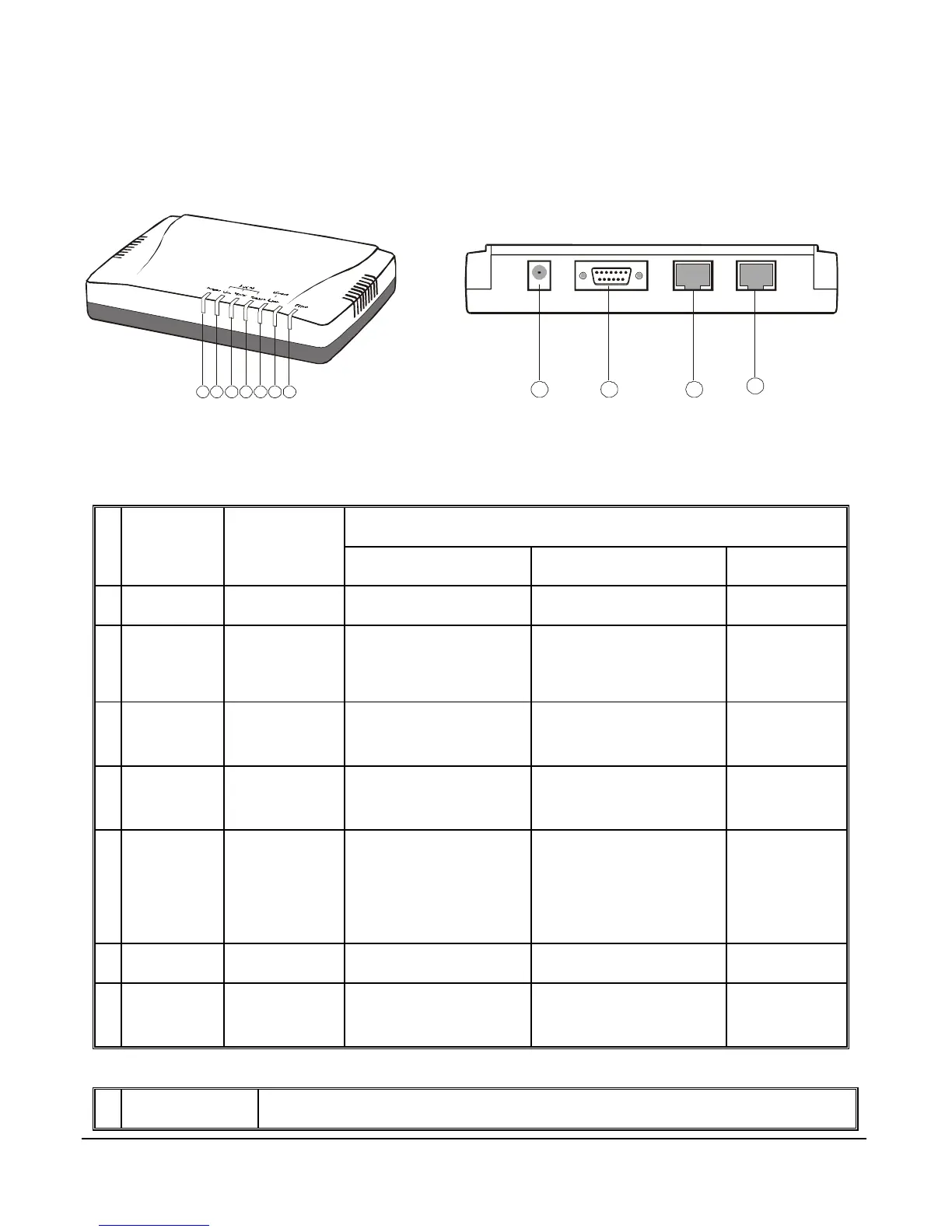

Figure 2: LED Indicators and Ports
Table 1: LED Indicators and Connections
LED Color Status
Indicator
Glowing Dimming Flashing
•
Power
Green Power On Power Off N/A.
‚
Local
Link
Green
Connected to a LAN
device
Disconnected from
any LAN device
Receiving/
Sending data
ƒ
Local
100/10
Green 100Mbps detected 10Mbps detected N/A.
„
Local
Full/Half
Green Full duplex Half duplex N/A.
…
Global
Link
Green
Connected to a Cable
Modem, Ethernet
Hub or any ADSL
Modem
Disconnected from
any Cable/ADSL
modem
Receiving/
Sending data
†
(Reserved)
Green N/A. N/A. N/A.
‡
Error
Red Components
malfunctioning
N/A. N/A.
Port Name
Functions
