D-Link DI-701 iShare User Manual

- 22 -

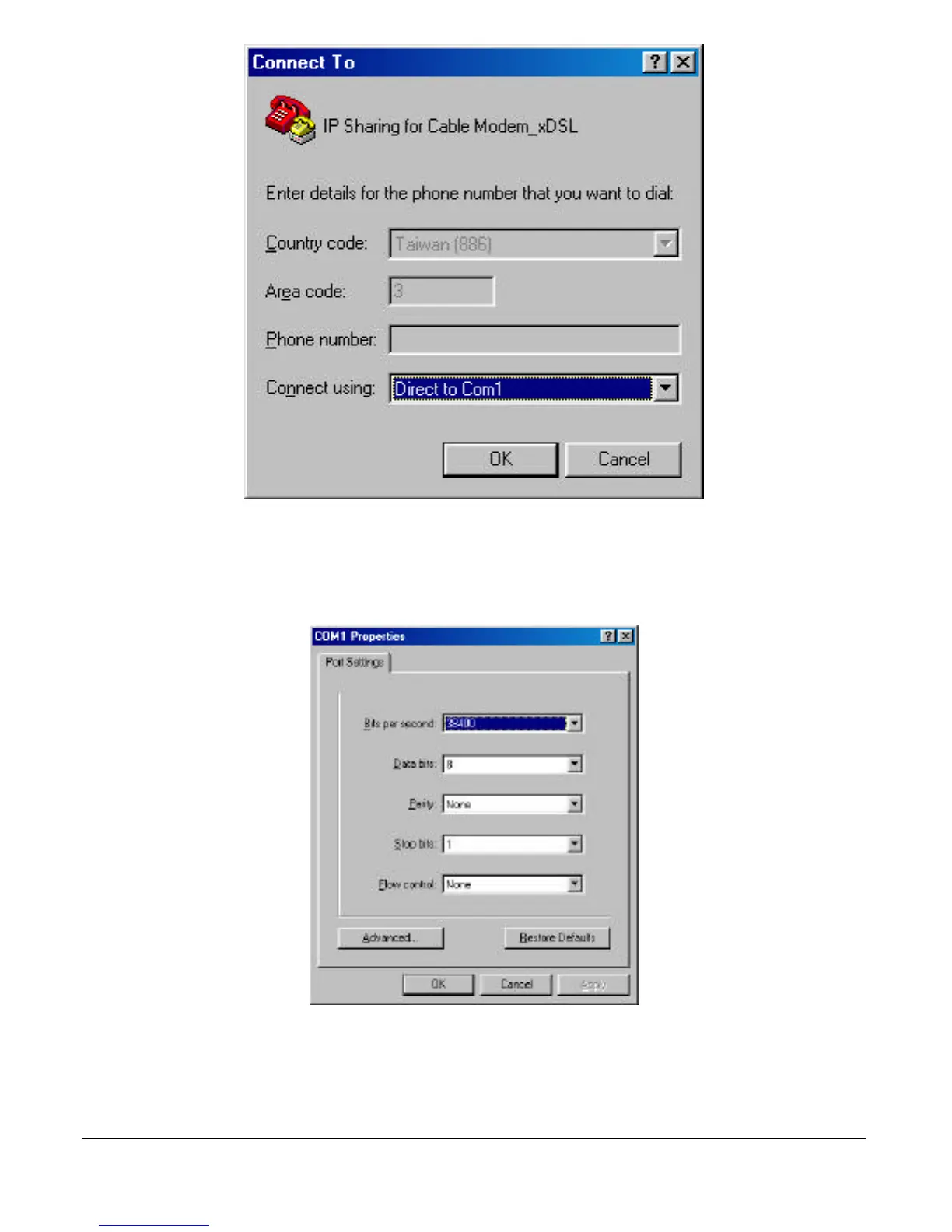

Figure 9: Connect To:
6. When the dialog box shown in Figure 9 appears, set the Bits per second rate at 38400,
and Flow control at None. Click OK to complete the setting. See Figure 10.
Figure 10: COM 1 Properties
7. Power on your DI-701.
8. The following information will appear.
