2.3 Procedure for Hardware Installation
1. Setup LAN connection: connect an Ethernet cable from your computer’s Ethernet port
to one of the LAN ports of the DI-704.

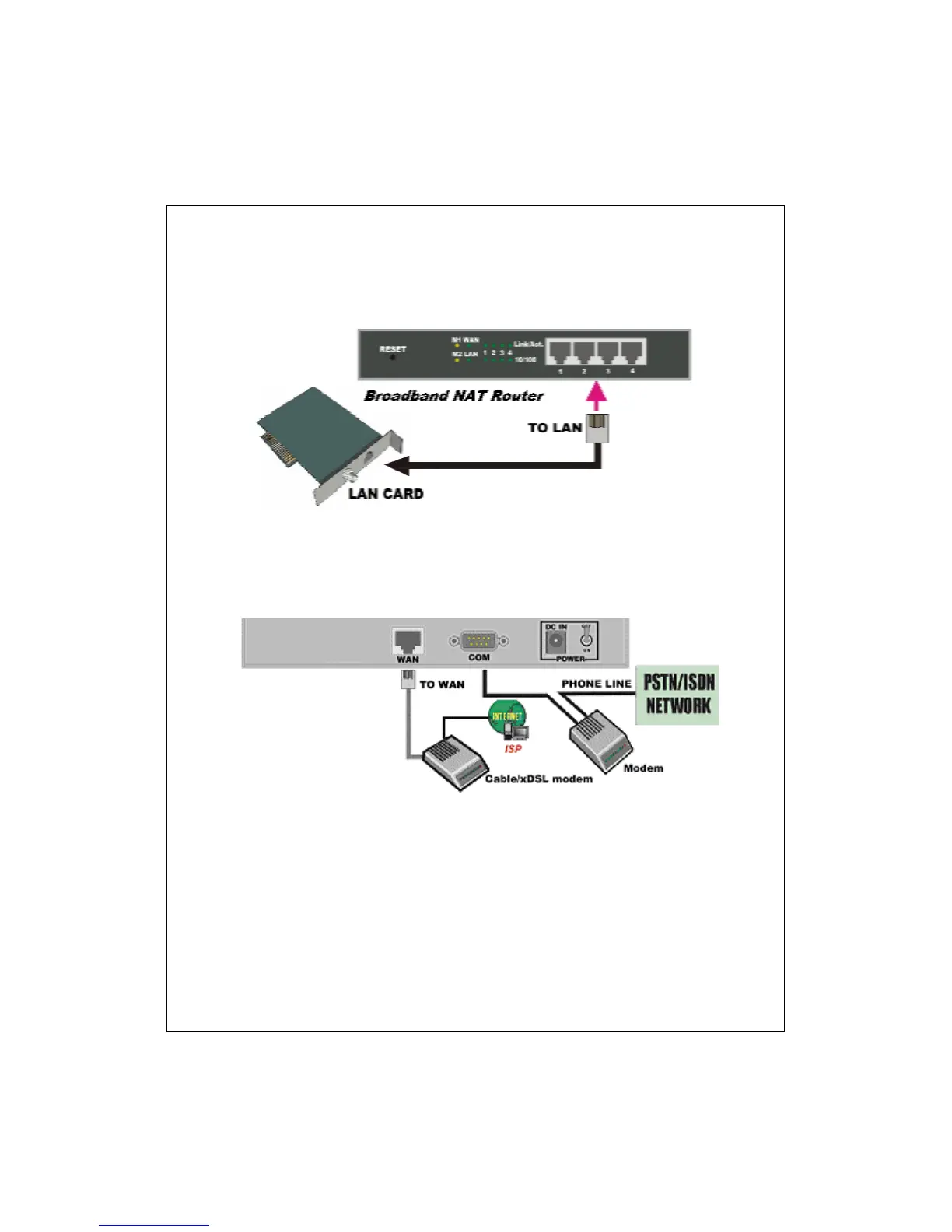

Figure 2-3 Setup of LAN connections for DI-704.
2. Setup WAN connection: prepare an Ethernet cable for connecting the DI-704 to your
cable/xDSL modem or Ethernet backbone. Figure 2-4 illustrates the WAN connection.
Figure 2-4 Setup of WAN connections for DI-704.
3. Power on: Connect the power cord to power inlet and turn the power switch on. The
DI-704 will automatically enter the self-test phase. When in the self-test phase, the
indicators M1 and M2 will be lighted ON for about 5 seconds, and then M1 and M2 will
flash three times to indicate that the self-test operation has finished. Finally, the M1 will
flash continuously once per second to indicate that the DI-704 is in normal operation.
