8
Chapter 4 Configuring The DI-704
The DI-704 provides a Web based configuration scheme, that is, configuring by Netscape
Communicator or Internet Explorer. This approach can be adopted in any MS Windows,
Macintosh or UNIX based platform.
4.1 Start-up and Log in
Activate your browser, open settings, and disable the proxy or add the IP address of the
DI-704 into the exceptions box. Then, type the DI-704’s IP address [for example (default
setting): http://192.168.0.1] in the Location (for Netscape) or Address (for IE) field and
press ENTER.

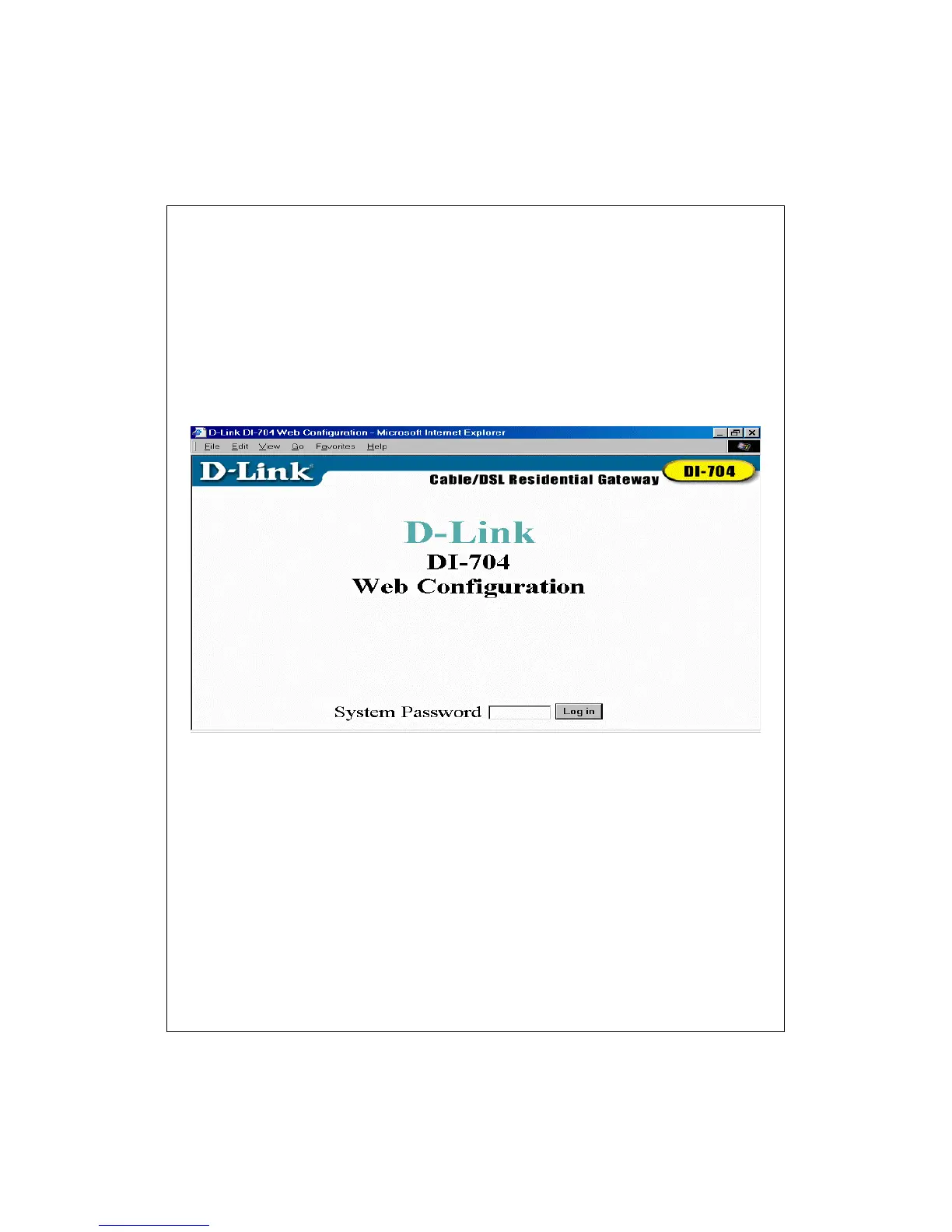

After the connection is established, you will see the web user interface of the DI-704. To log
in as an administrator, enter the system password (the factory setting is ”admin”) in the
System Password field and click on the Log in button. If the password is correct, the web
appearance will be changed into administrator configure mode.
