5D-Link DIR-830L User Manual
Section 1 - Product Overview
Hardware Overview

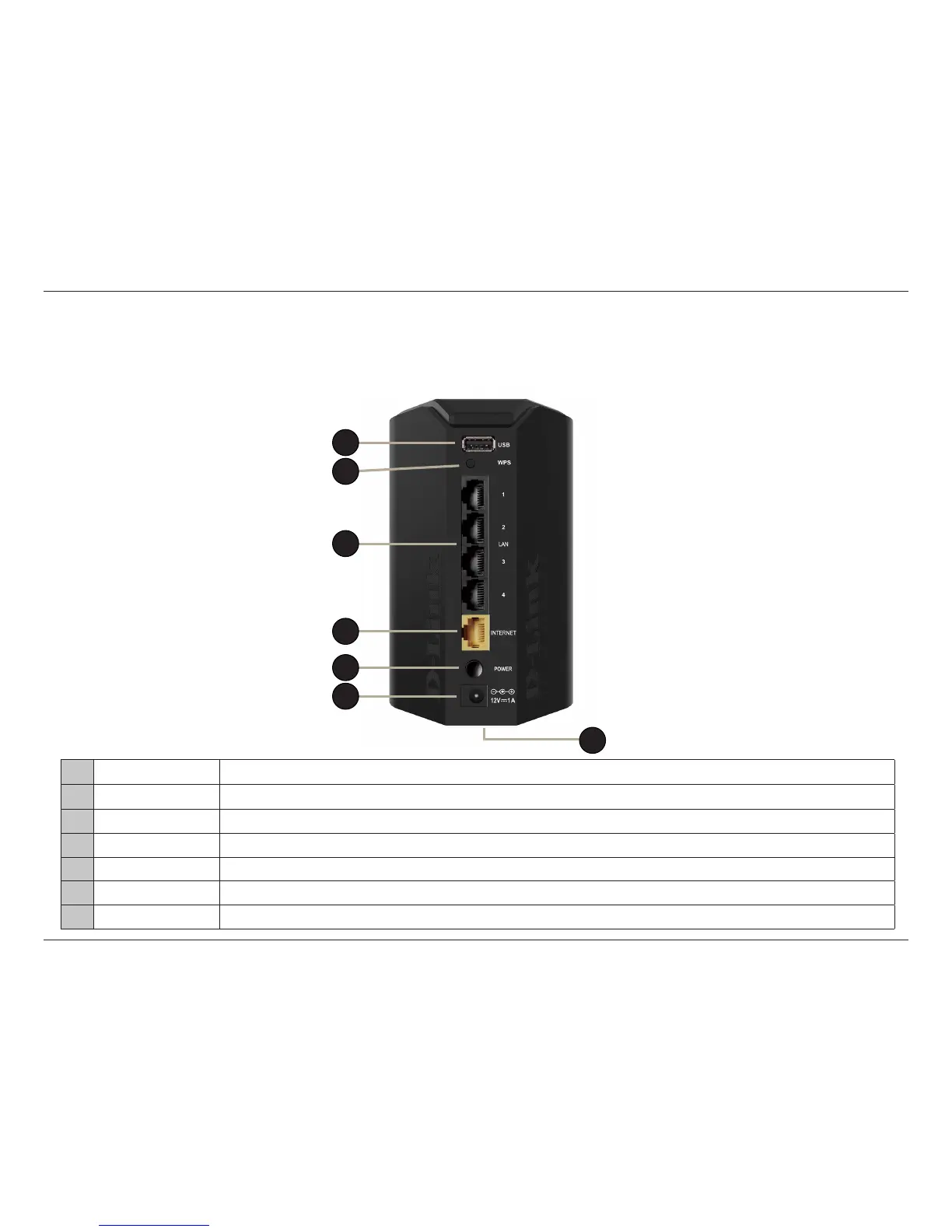

Connections
1
USB Port Connect a USB ash drive to share content throughout your network.
2 WPS Button Press to start the WPS process. The Internet LED will start to blink.
3 LAN Ports (1-4) Connect 10/100 Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
4 Internet Port Using an Ethernet cable, connect your broadband modem to this port.
5 Power Button Press the power button to power on and o.
6 Power Receptor Receptor for the supplied power adapter.
7 Reset Button Use a paperclip to press and hold the button for 10 seconds to reset the router to factory default settings.
1
3
4
5
6
2
7
