D-Link DMS-105 User Manual

2
ENGLISH

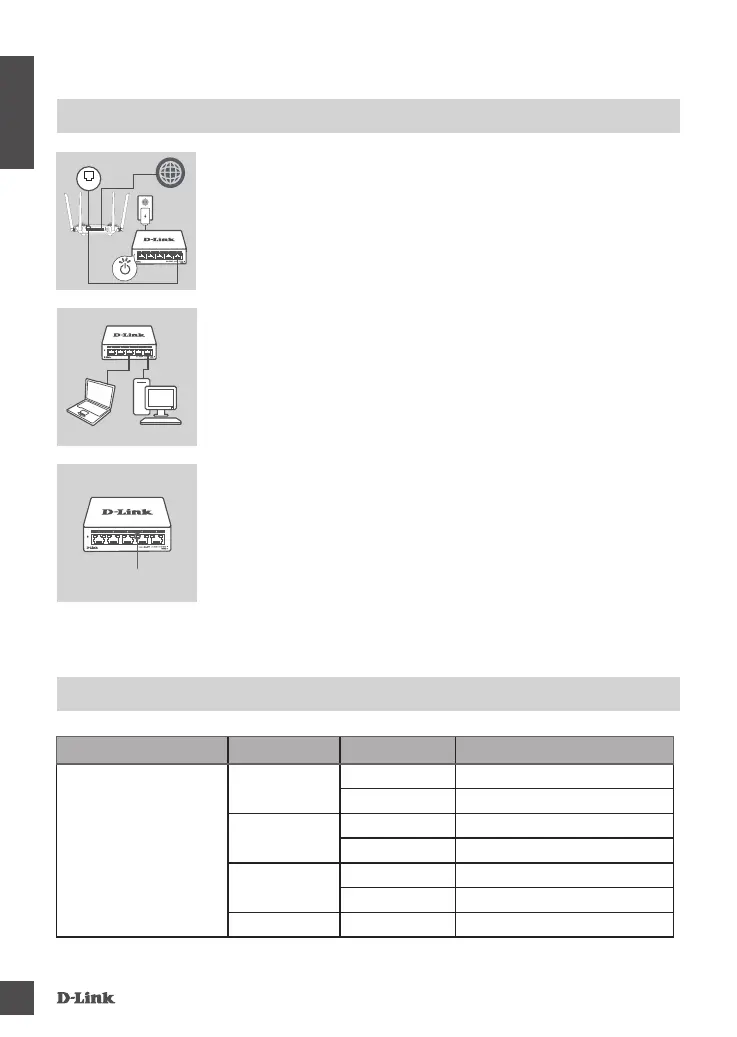

PRODUCT SETUP
SWITCH SET-UP
Step 1
Plug the power adapter into a free wall socket, then plug the other
end of the power adapter cable into the power port of the switch.
The power LED will light up, conrming that the device is powered
up successfully.
Step 2
Use a LAN cable to connect your network device to one of the 5
ports on the switch.
Step 3
Check the Link/Act lights(LEDs) on the switch to verify a proper
connection.
Router
Internet
Status LED
LAN LAN LAN LAN
LAN
Location Color Status Description
LED Per 2.5G BASE-T Port
(Port 1-5)
Blue
Solid 2.5G Connection
Blinking Data transmission/Activity
Green
Solid 1000M Connection
Blinking Data transmission/Activity
Amber
Solid 10/100M Connection
Blinking Data transmission/Activity
O󰀨 Light o󰀨 No link
PORT LED CONNECTION SPEED
Link/Act LED INDICATORS
Power

D-Link DMS-105 Specifications

General

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	-
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity	5
Forwarding rate	18.6 Mpps
MAC address table	4000 entries
Packet buffer memory	8.1 MB
Product color	Black
LED indicators	Activity, Link, Power
Power source	DC
Input current	1 A
DC input voltage	12 V
Power consumption (typical)	4.918 W
Heat dissipation	16.78 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Mean time between failures (MTBF)	765190 h
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Sustainability certificates	BSMI, CE, Low Voltage Directive (LVD), RoHS

Weight and Dimensions

Depth	82 mm
Width	100.5 mm
Height	28 mm
Weight	238.6 g
