D-Link DSL-2740U Quick Installation Guide

DSL-2740U Quick Installation Guide

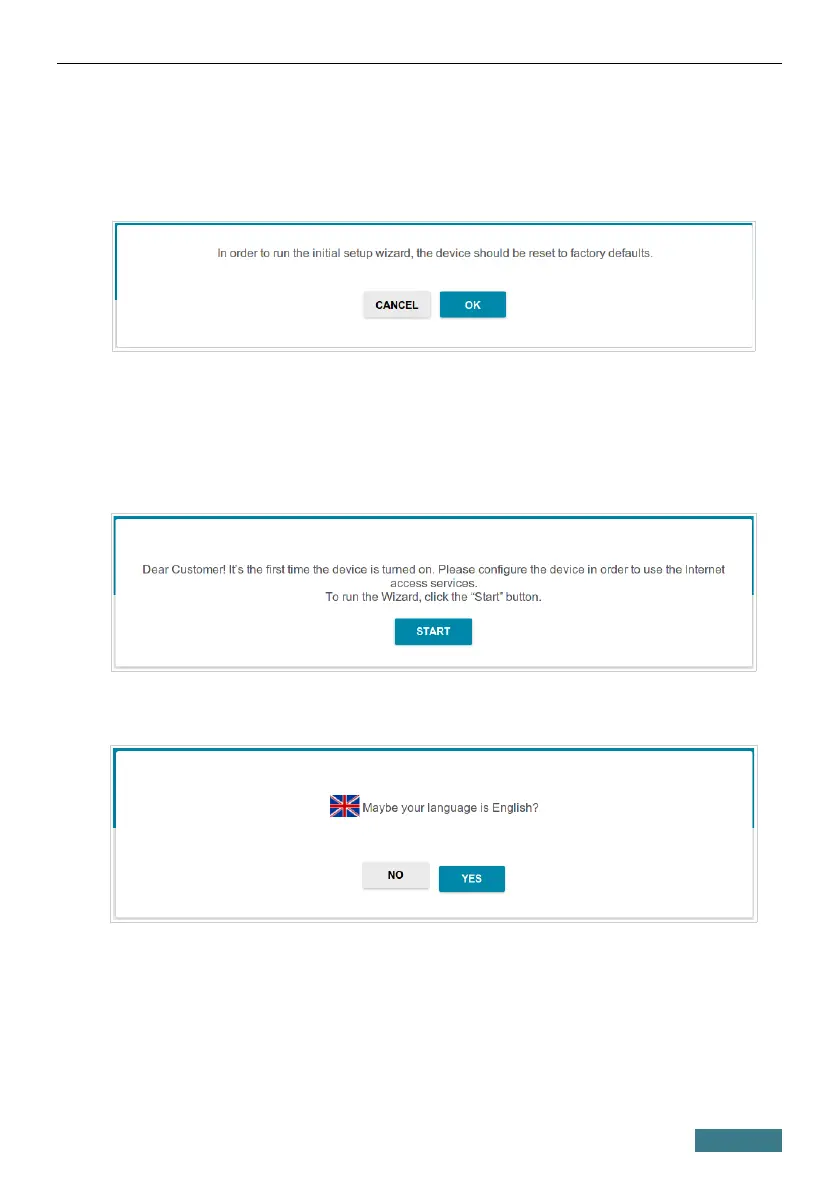

Initial Configuration Wizard
In order to start the Initial Configuration Wizard manually, go to the Initial
Configuration section.
Click the OK button and wait until the factory default settings are restored.
Then click the START button.
If the device has not been configured previously or the default settings have
been restored, the Initial Configuration Wizard starts automatically upon
access to the web-based interface or upon opening a web site on the Internet.
1. Click YES in order to leave the current language of the web-based
interface or click NO to select the other language.
2. On the next page, click the CONTINUE button.
18

D-Link DSL-2740U Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector	RJ-11
ADSL interface cable	24/26 AWG twisted pair
LAN interface connector	RJ-45
LAN interface standard	10/100BASE-T Ethernet
