D-Link DSL-2740U Quick Installation Guide

DSL-2740U Quick Installation Guide
Selecting Operation Mode

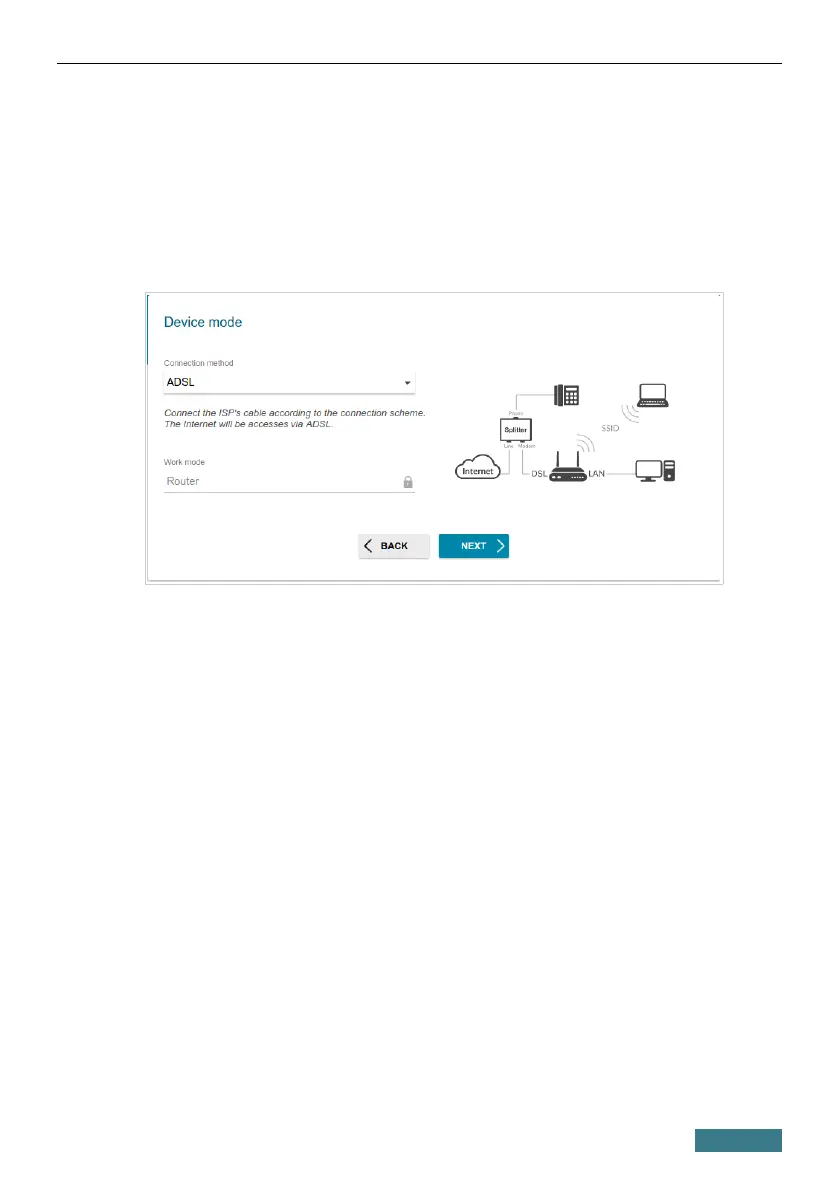

In order to connect your device to an ADSL line, on the Device mode page,
from the Connection method list, select the ADSL value. In this mode you
can configure a WAN connection, set your own settings for the wireless
network, configure LAN ports to connect an STB or VoIP phone, and set your
own password for access to the web-based interface of the device.
In order to connect your device to an Ethernet line, on the Device mode
page, from the Connection method list, select the Ethernet value. In this
mode you can configure a LAN port as a WAN port, configure a WAN
connection, set your own settings for the wireless network, configure LAN
ports to connect an STB or VoIP phone, and set your own password for access
to the web-based interface of the device.
When the operation mode is selected, click the NEXT button.
19

D-Link DSL-2740U Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector	RJ-11
ADSL interface cable	24/26 AWG twisted pair
LAN interface connector	RJ-45
LAN interface standard	10/100BASE-T Ethernet
