D-Link DSL-2740U Quick Installation Guide

DSL-2740U Quick Installation Guide
Conguring Wireless Network

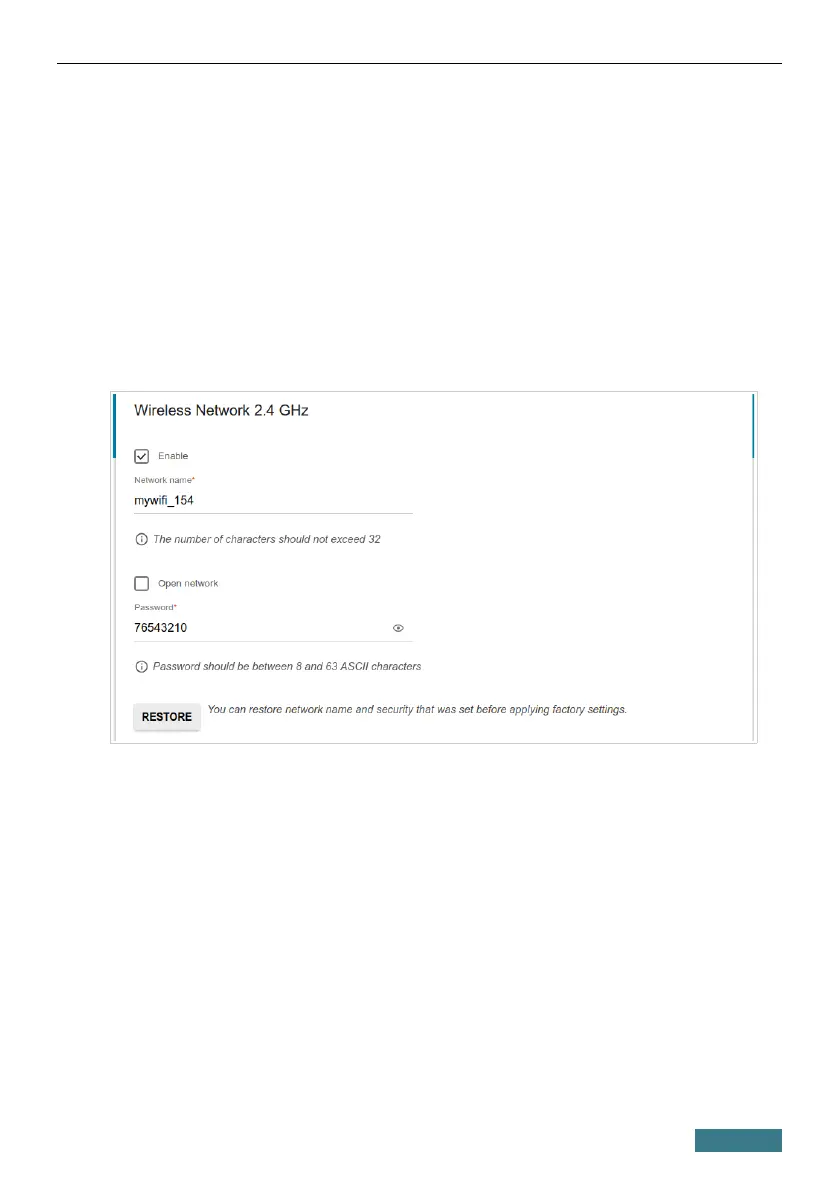

1. On the Wireless Network 2.4 GHz page, in the Network name field,
specify your own name for the wireless network or leave the value
suggested by the router.
2. In the Password field, specify your own password for access to the
wireless network or leave the value suggested by the router (WPS PIN of
the device, see the barcode label).
3. You can restore the parameters of the wireless network specified before
resetting to factory defaults. To do this, click the RESTORE button.
25

D-Link DSL-2740U Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector	RJ-11
ADSL interface cable	24/26 AWG twisted pair
LAN interface connector	RJ-45
LAN interface standard	10/100BASE-T Ethernet
