D-Link DSL-2740U Quick Installation Guide

DSL-2740U Quick Installation Guide
Conguring LAN Ports for IPTV/VoIP

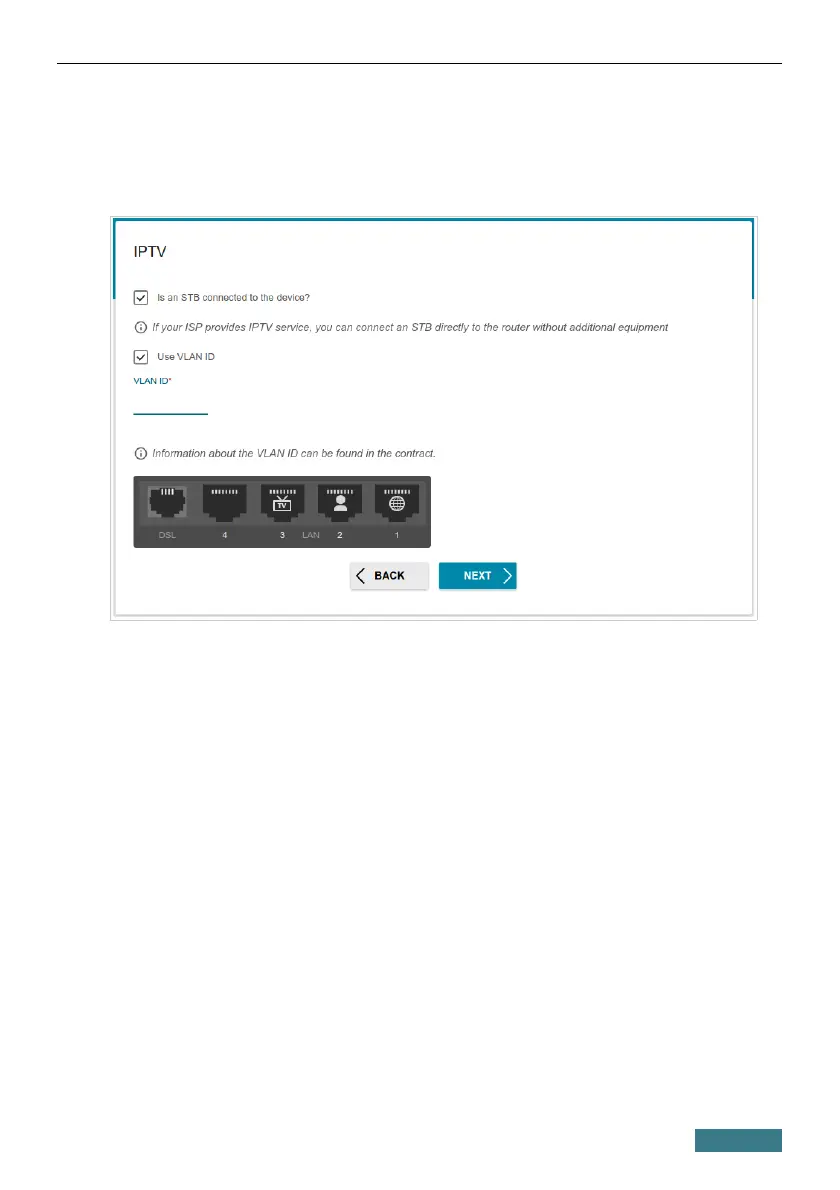

1. On the IPTV page, select the Is an STB connected to the device
checkbox.
2. Select a free LAN port for connecting your set-top box.
3. For the Ethernet connection method: If the IPTV service is provided via
a VLAN channel, select the Use VLAN ID checkbox and fill in the
VLAN ID field.
4. For the ADSL connection method: Specify the VPI and VCI values in the
relevant fields.
5. Click the NEXT button.
27

D-Link DSL-2740U Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector	RJ-11
ADSL interface cable	24/26 AWG twisted pair
LAN interface connector	RJ-45
LAN interface standard	10/100BASE-T Ethernet
