DSL-2740U Quick Installation Guide

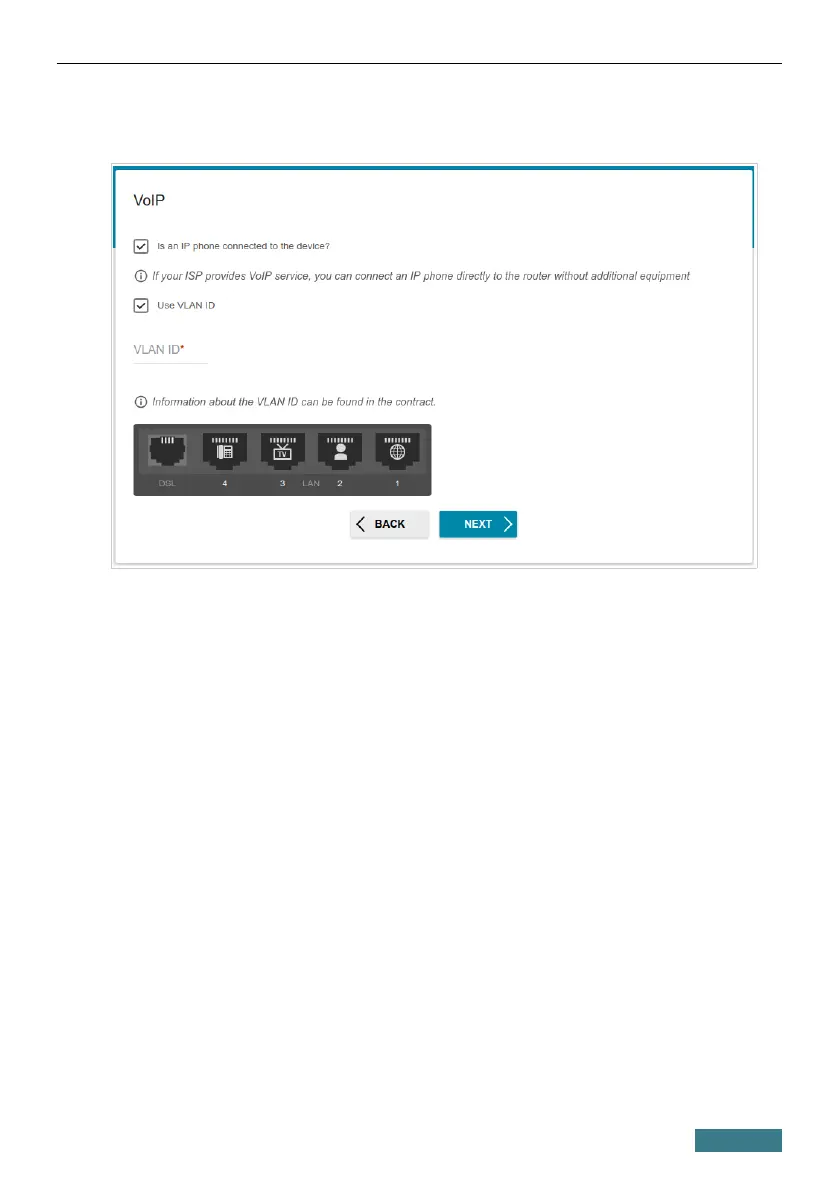

6. On the VoIP page, select the In an IP phone connected to the
device checkbox.
7. Select a free LAN port for connecting your IP phone.
8. For the Ethernet connection method: If the VoIP service is provided via
a VLAN channel, select the Use VLAN ID checkbox and fill in the
VLAN ID field.
9. For the ADSL connection method: Specify the VPI and VCI values in the
relevant fields.
10. Click the NEXT button.
28
