D-Link DSL-2740U Quick Installation Guide

DSL-2740U Quick Installation Guide

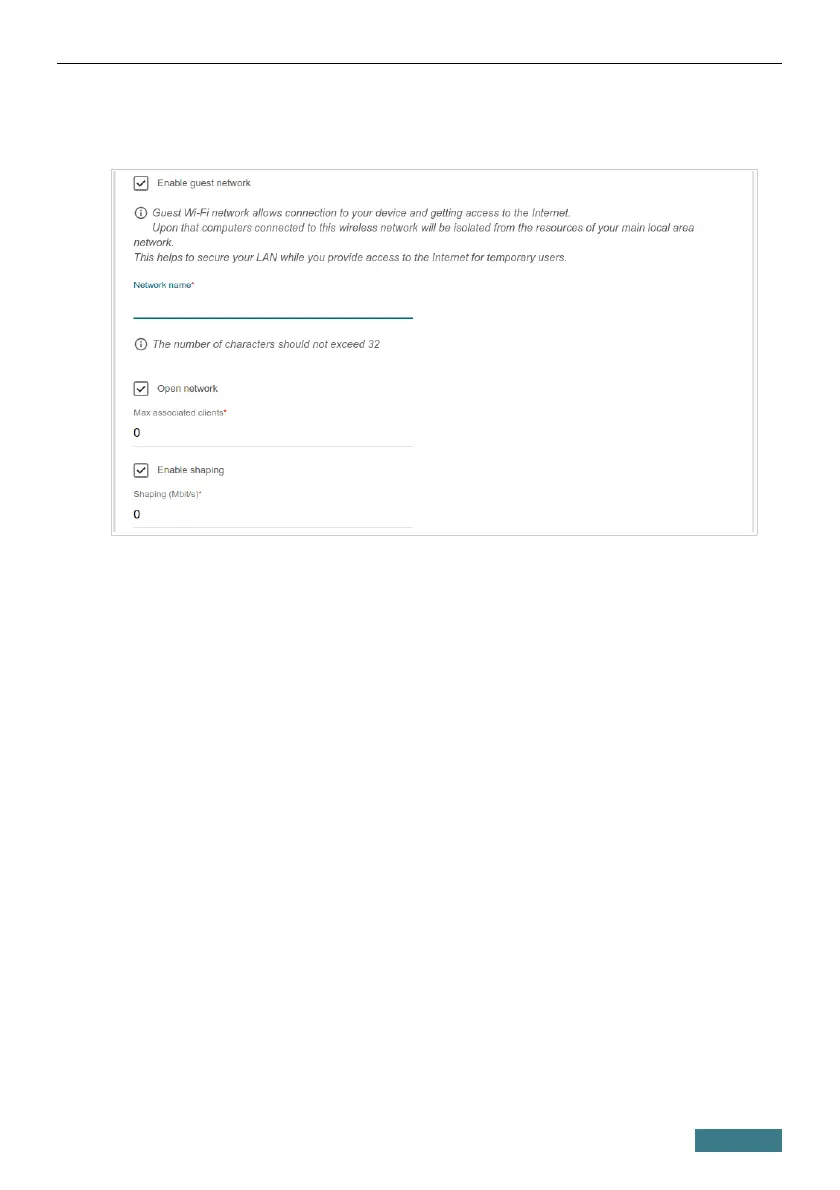

4. If you want to create an additional wireless network isolated from your
LAN, select the Enable guest network checkbox.
5. In the Network name field, specify your own name for the guest
wireless network or leave the value suggested by the router.
6. If you want to create a password for access to the guest wireless network,
deselect the Open network checkbox and fill in the Password field.
7. If you want to limit the bandwidth of the guest wireless network, select
the Enable shaping checkbox and fill in the Shaping field.
8. Click the NEXT button.
26

D-Link DSL-2740U Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector	RJ-11
ADSL interface cable	24/26 AWG twisted pair
LAN interface connector	RJ-45
LAN interface standard	10/100BASE-T Ethernet
