DSL-514 ADSL Router User’s Guide
47

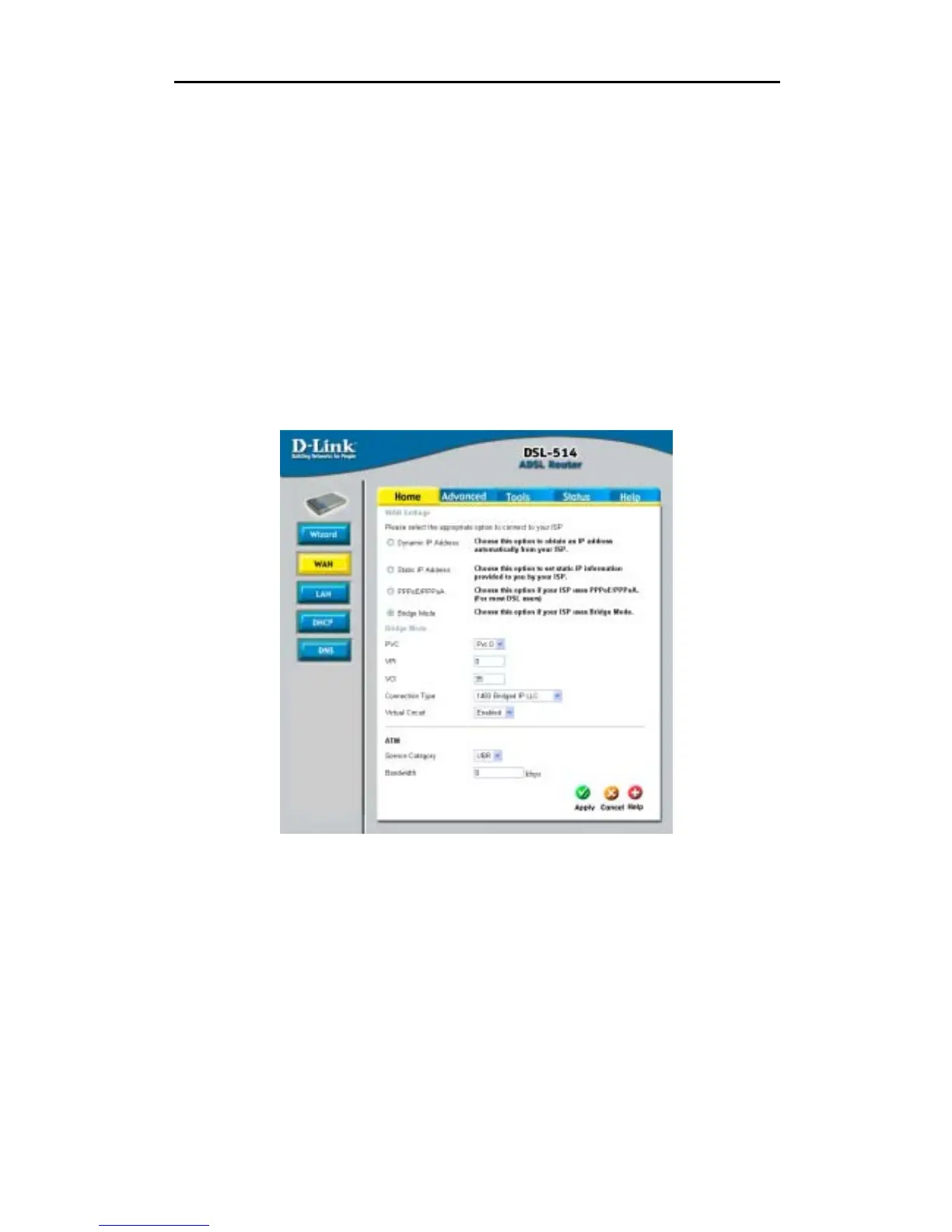

Home＞WAN＞Bridge Mode
Choose Bridge Mode if all WAN IP information is provided to you by your ISP. You will need to enter in
the VPI, VCI and select connection type provided to you by your ISP.
VPI: If instructed to change this, type in the VPI value for the initial connection.
VCI: If instructed to change this, type in the VCI value for the initial connection.
Connection Type: Change connection method and packet encapsulation technique as instructed by
your ISP. The available connection types are 1483 Bridge IP LLC, 1483 Bridge IP VC-Mux, form the
pull-down menu. Default Connection Type = 1483 Bridge IP LLC.
Virtual Circuit: Selection Enable or Disable.
ATM
Service Category: UBR and CBR are supported form the ATM.
Bandwidth: Bandwidth setting takes effect only when the CBR is selected. The maximum available
bandwidth is from the upstream data rate of ADSL status page.
