DSL-514 ADSL Router User’s Guide
72
ATM

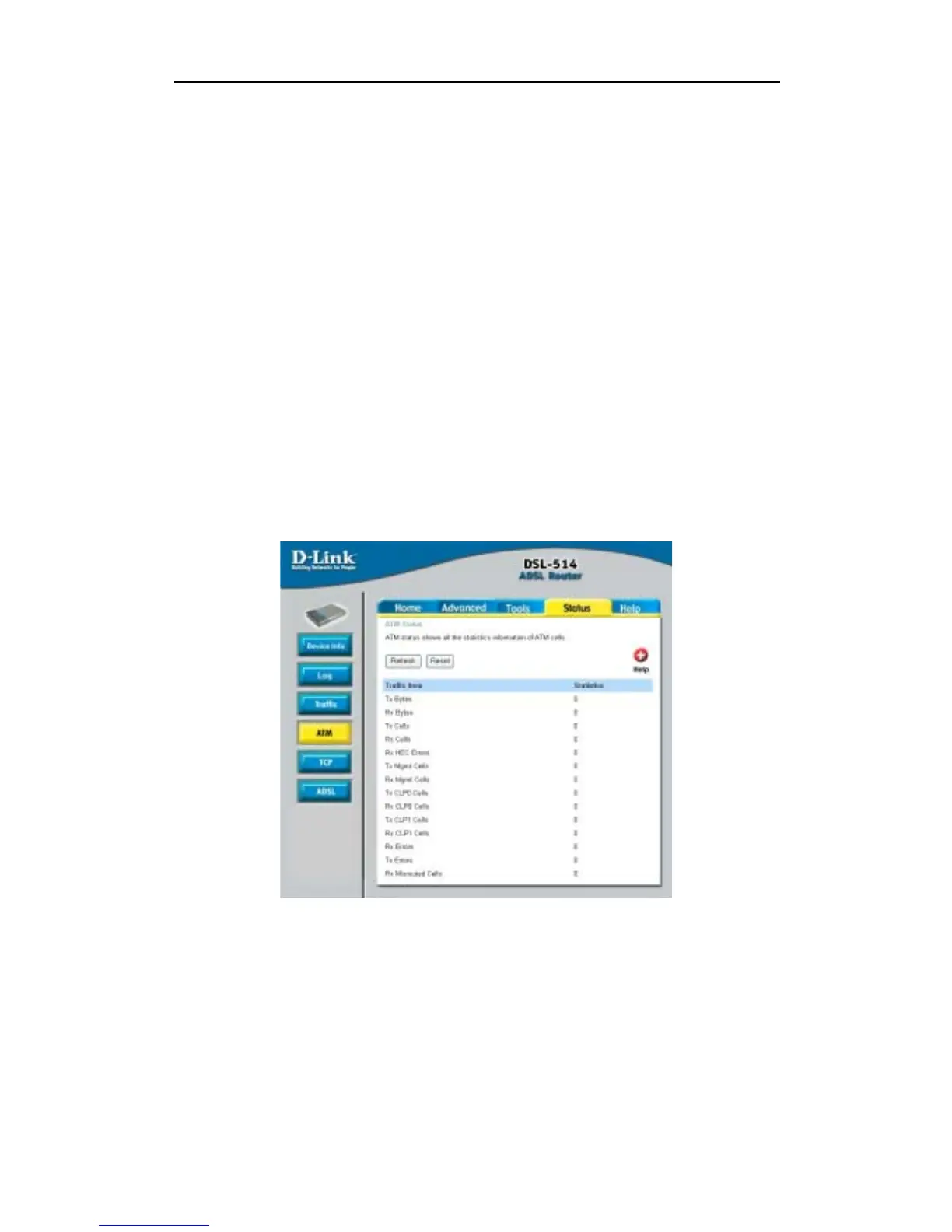

The ATM Status page shows all the statistics information of ATM cells.
Tx Bytes: Total Good Bytes TX’s
Rx Bytes: Total Good Bytes Received
Tx Cells: Total Good Cells TX’s
Rx Cells: Total Good Cells Received
Rx HEC Errors: Number of cells received with failed checked
Tx Mgmt Cell: Number of mgmt cells TX’s
Rx Mgmt Cell: Number of mgmt cells received
Tx CLP0 Cell: Number of cells sent with CLP=0
Rx CLP0 Cell: Number of cells received with CLP=0
Tx CLP1 Cell: Number of cells sent with CLP=1
Rx CLP1 Cell: Number of cells received with CLP=1
Rx Errors: Number of bad frames that Received
Tx Errors: Number of bad frames that TX’s
Rx Misrouted Cells: Number of cells received with invalid VPI/VCI
