DSL-514 ADSL Router User’s Guide
59

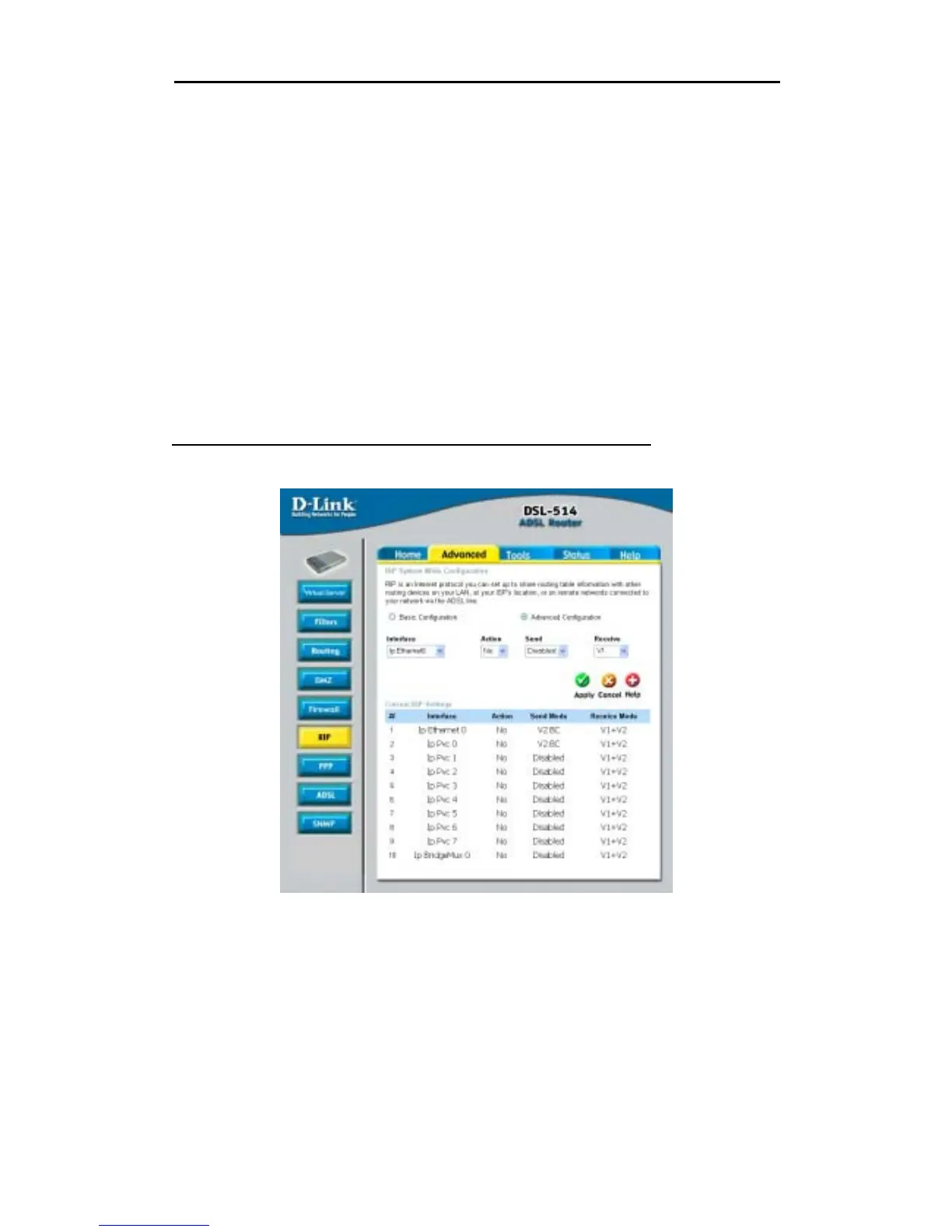

Advanced＞RIP＞Advanced Configuration
Interface: This field allows the user to choose the Interface (PVCs, PPP Sessions and LAN), for the RIP
to be configured.
Action: This field allows the user to Enable (Yes) or Disable (No) the specified interface for RIP.
Send: This field allows the user to select the Send Mode (RIP Transmit)
Disabled: The supplier transmit is disabled.
V1BC: The supplier transmits in RIPv1 Broadcast.
V2BC: The supplier transmits in RIPv2 Broadcast.
V2MC: The supplier transmits in RIPv2 Multicast.
Receive: This field allows the user to select the Receive Mode (RIP Receive)
V1: The listener receives the RIPv1 only.
V2: The listener receives the RIPv2 only.
V1+V2: The listener receives the both RIPv1 and RIPv2.
Supplier and Listener are based on section 4.1 "Compatibility Switch" in RFC1723.
Current RIP: The field displays the each interface's RIP status.
