Unified Services Router User Manual
146

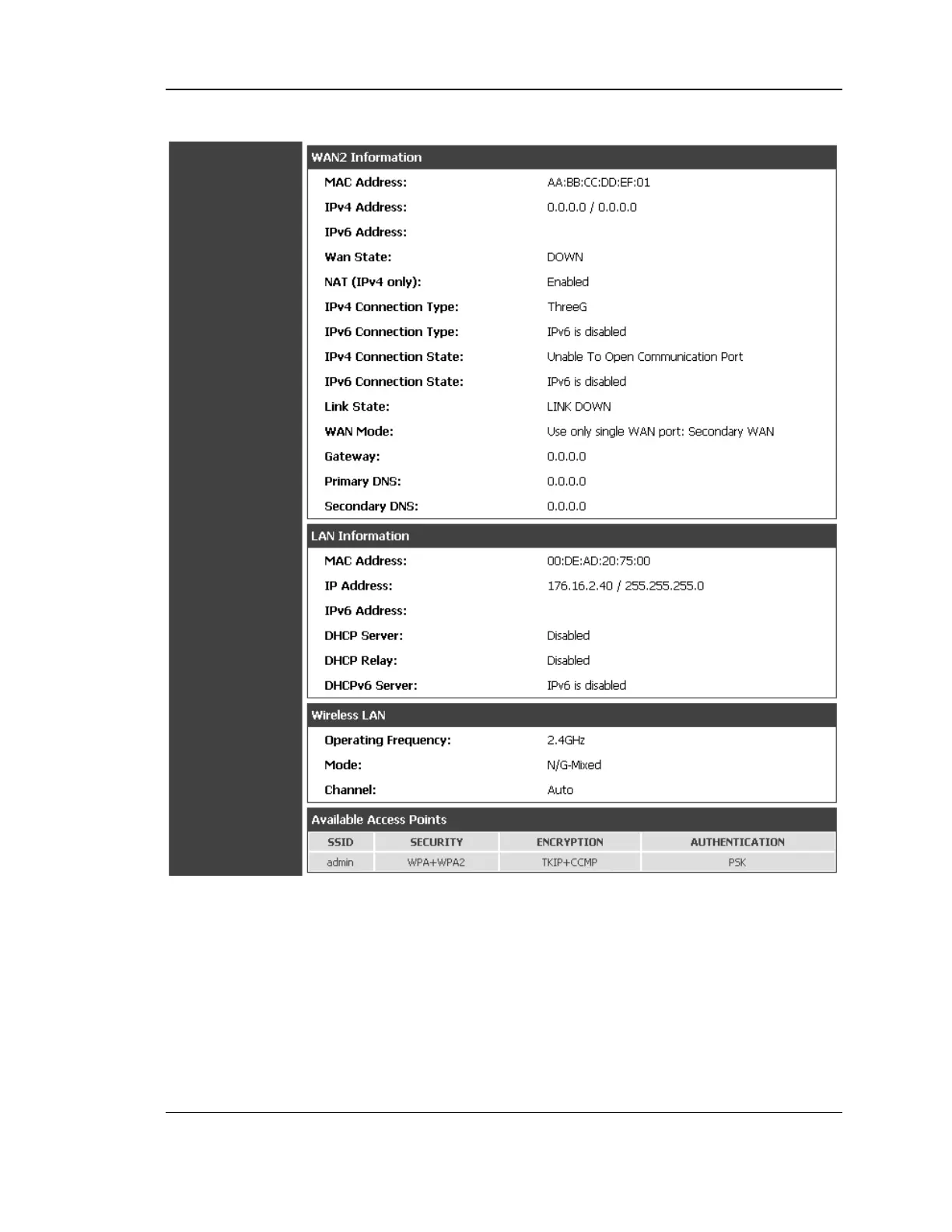

Figure 102: Device Status display (continued)
10.1.2 Resource Utilization
Status > Device Info > Dashboard
The Dashboard page presents hardware and usage statistics. The CPU and Memory
utilization is a function of the available hardware and current configuration and
traffic through the router. Interface statistics for the wired connections (LAN,
WAN1, WAN2/DMZ, VLANs) provide indication of packets through and packets
dropped by the interface. Click refresh to have this page retrieve the most current
statistics.
