Unified Services Router User Manual
51

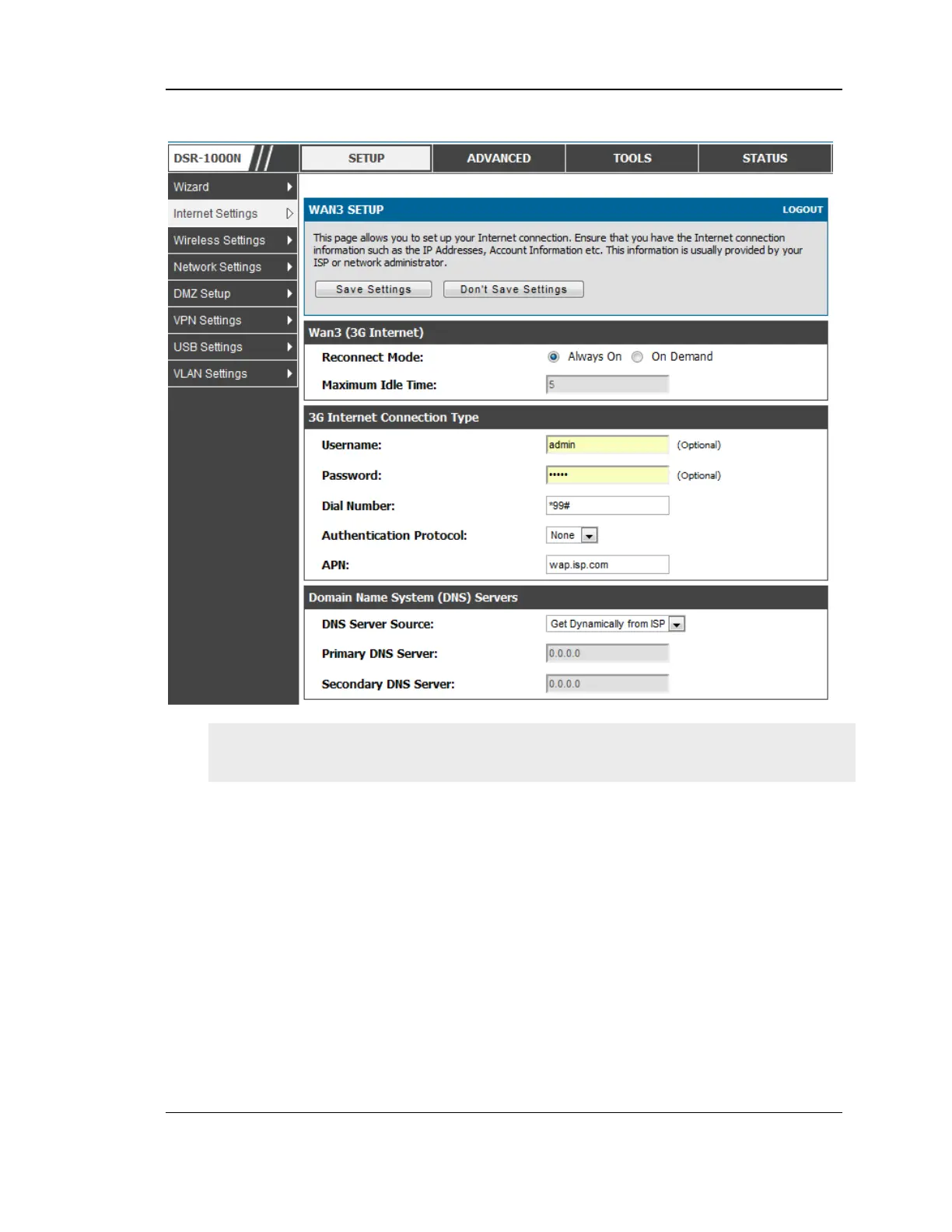

Figure 26: WAN3 configuration for 3G internet
3G WAN support is available on these dual WAN products: DSR-1000 and DSR-
1000N.
Cellular 3G internet access is available on WAN3 via a 3G USB modem for DSR-
1000 and DSR-1000N. The cellular ISP that provides the 3G data plan will provide
the authentication requirements to establish a connection. The dial Number and APN
are specific to the cellular carriers. Once the connection type settings are configured
and saved, navigate to the WAN status page (Setup > Internet Settings > WAN3
Status) and Enable the WAN3 link to establish the 3G connection.
3.8 WAN Port Settings
Advanced > Advanced Network > WAN Port Setup
The physical port settings for each WAN link can be defined here. If your ISP account
defines the WAN port speed or is associated with a MAC address, this information is
required by the router to ensure a smooth connection with the network.
