Section 7 - VPN

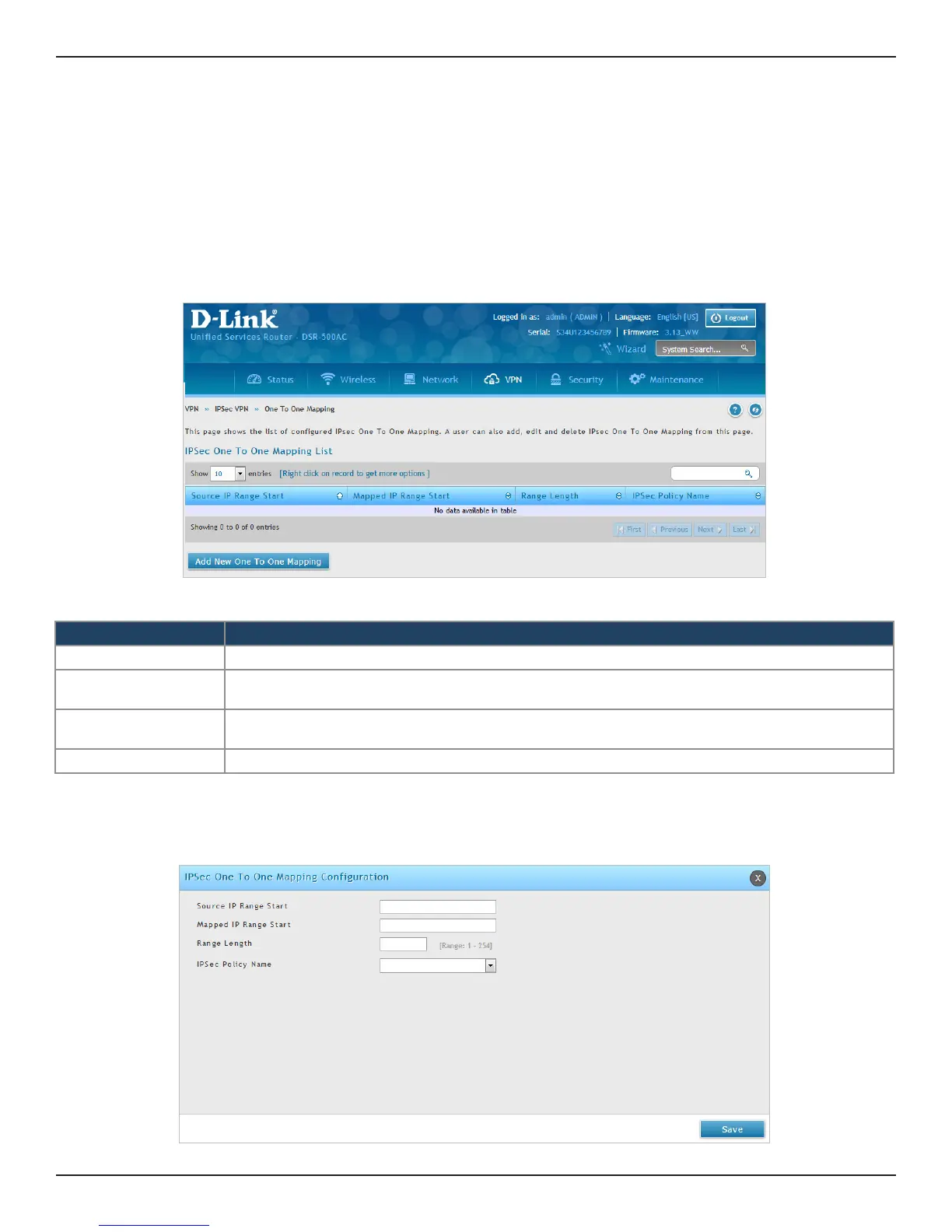

One To One Mapping
Path: VPN > IPSec VPN > One To One Mapping
This page shows a list of congured IPsec One To One Mapping. A user can add, edit, and delete IPsec One To One
Mapping on this page. To upload an exported IPSec VPN policy, follow the steps given below:
1. Click VPN > IPSec VPN > One To One Mapping.
2. IPsec One to One Mapping list is displayed. The table lists the available One to One Mapping rules that
have been congured.
3. The elds present on this page are given in the table below.
Field Description
Source IP Range Start It displays the starting IP address in the private (LAN) IP subnet.
Mapped IP Range Start
It displays Mapped IP address through which trac should be forwarded/received from/to the LAN host
IP or range of IP addresses.
Range Length
It displays Range value between 1 to 254, which maps One To One private address to public address up
to given range.
IPSec Policy Name It displays the name of the IPSec policy associated with the congured One To One mapping rule.
4. To add a new entry into the table, click Add New One to One Mapping to open the One to One
Mapping Conguration page.

D-Link DSR-500AC Specifications

General

Firewall	Yes
Firewall security	Port Address Translation (PAT)
Security algorithms	3DES, DES, EAP-PEAP, EAP-TLS, EAP-TTLS, SSID, WEP, WPA, WPA-EAP, WPA-PSK, WPA2, WPA2-EAP, WPA2-PSK, WPS
Authentication method	POP3, LDAP, AD, NT Domain
SIM card slot	No
VPN support	IPSec/PPTP/L2TP/OpenVPN Server
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
VPN tunnels quantity	95
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	6
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
Product type	Tabletop router
Product color	Black
LED indicators	Activity
Power supply	13.1 W
Output current	2.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Certification	FCC Class B, CE Class B, RCM, IC, cUL, LVD (EN60950-1)
Mean time between failures (MTBF)	360000 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Routing protocols	OSPF, RIP-1, RIP-2
Supported network protocols	PPoE, L2TP, PPTP, DNS
Antennas quantity	3
Antenna gain level (max)	2 dBi

Weight and Dimensions

Depth	180 mm
Width	280 mm
Height	44 mm
