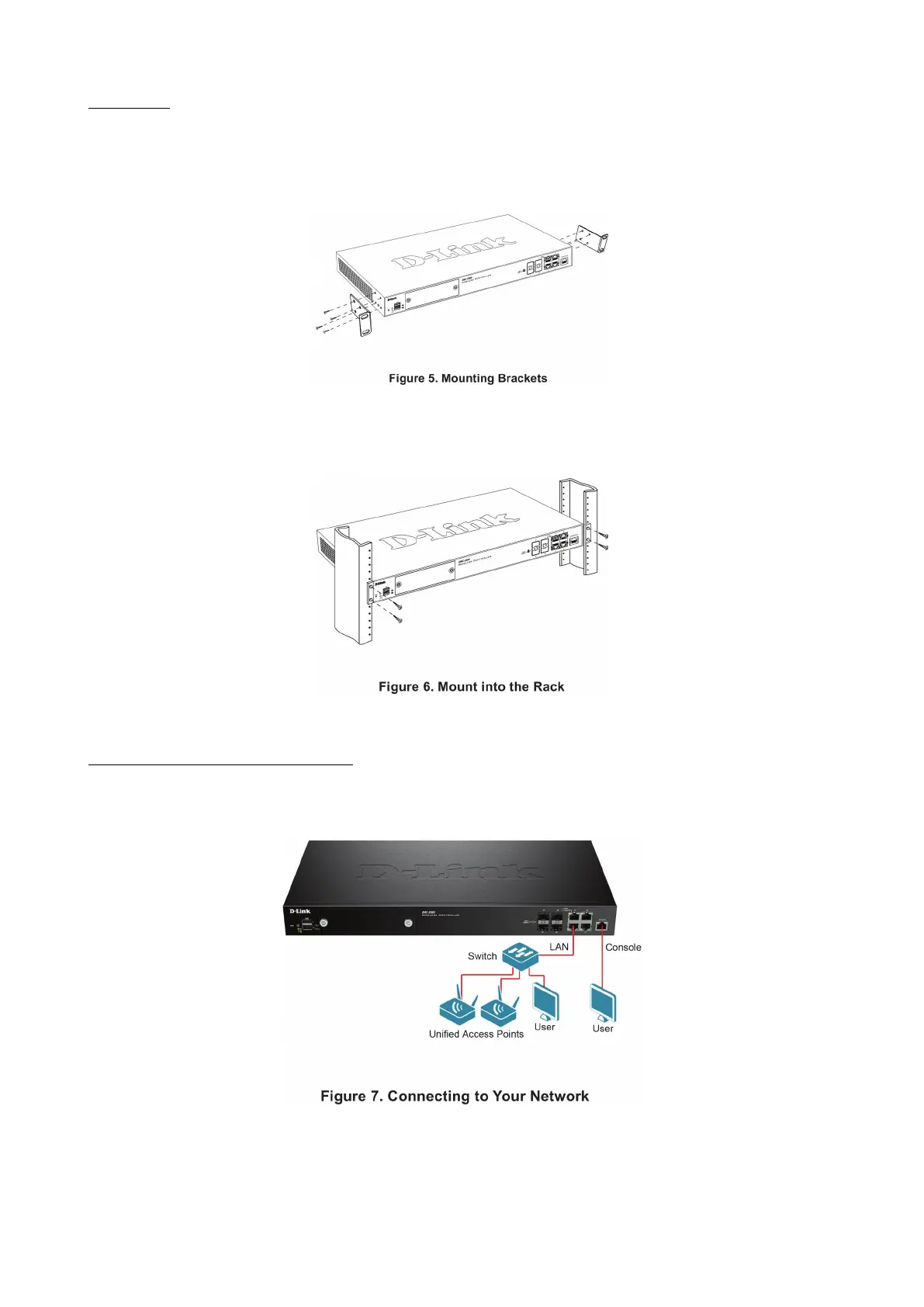

Installation
You can mount the DWC-2000 into a standard 19-inch equipment rack. To install the DWC-2000 into a rack:
1. Attach the mounting brackets to each side of the chassis as shown in Figure 5 and secure them with the
screws provided.
2. Use the screws provided with the equipment rack to mount the device in the rack as shown in Figure 6.
Connecting the Device to a Network
Connect the necessary cables as shown in Figure 7.
1. Connect an RJ-45 cable from one of the ports labelled LAN (1-4) to a switch in the LAN network segment.
2. Connect an RJ-45 to DB-9 cable from the console port to a workstation to use the CLI (Command Line
Interface) for management.
