Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 46
January 2015
Section 4 - Managing the Access Point

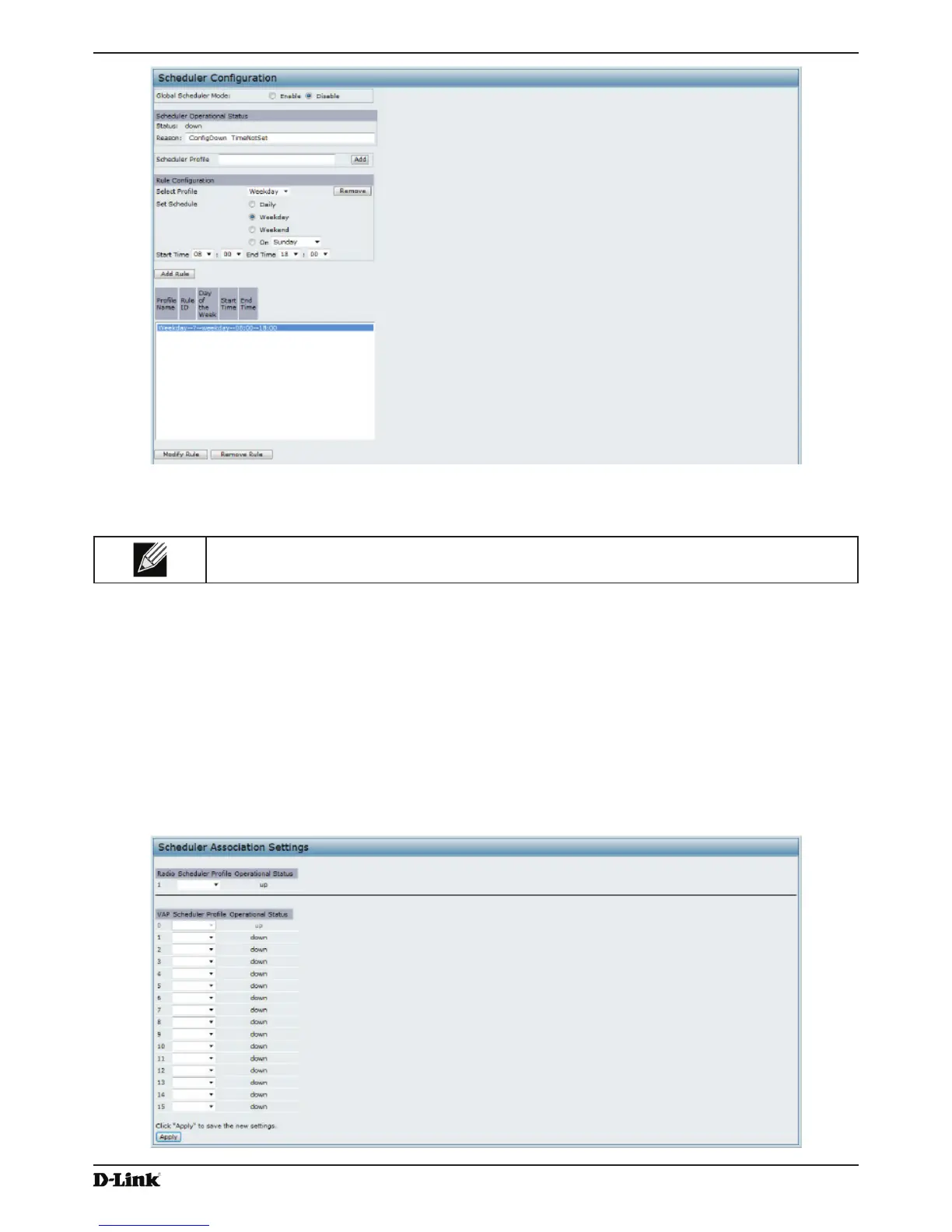

Figure 20 - Scheduler Conguration (Modify Rule)
Click Apply to save the new conguration settings.
Note: After making any modications, you must click Apply to apply the changes and to save the
settings.
Scheduler Association Settings
For a Scheduler prole to take effect, you must associate it with at least one radio or VAP interface. To associate the
Scheduler proles, select the Scheduler Association tab in the Manage section. By default, there are no Scheduler
proles created, so no prole is associated to any radio or VAP. The Scheduler prole needs to be explicitly associated
to a radio or VAP conguration. Only one Scheduler prole can be associated to any radio or VAP conguration;
however, a single prole can be associated to multiple radios or VAPs. If the Scheduler prole associated with a VAP
or radio is deleted, then the associated prole to the VAP or radio is removed implicitly. If the radio is operationally
disabled, then all the VAPs associated to that radio are also operationally disabled irrespective of the VAP
conguration.
Figure 21 - Scheduler Association Settings
