D-Link DWM-312 - Top Panel

DWM- 312
4
ENGLISH
Top Panel
1
2
3
4
6
5
7

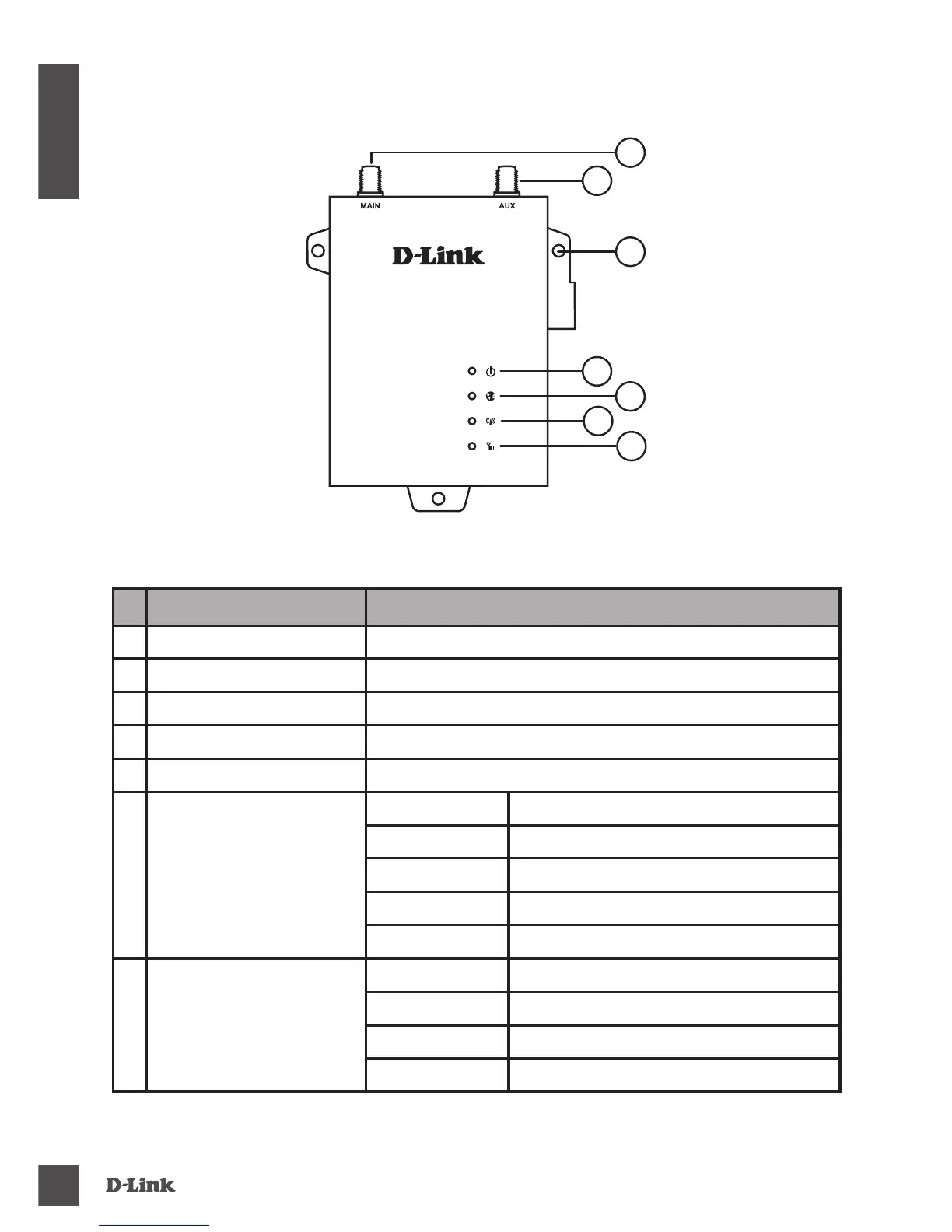

Figure 2
# Item Description
1 SMA Connector Main
1
SMA female connector - Primary antenna.
2 SMA Connector AUX
1
SMA female connector - Auxiliary Antenna.
3 Wall Mounts Wall mounts for standard 8 gauge (4 mm) screws.
4 Power A green LED indicates the DWM-312 is receiving power.
5 Internet A green LED indicates Internet connectivity.
6 Network
Solid Green Connected to SIM A LTE Network.
Flashing Green Fallback to SIM A 3G/2G network.
Solid Blue Connected to SIM B LTE Network.
Flashing Blue Fallback to SIM B 3G/2G network.
O No Service/SIM Error/APN Error.
7 Signal
Green Indicates strong signal.
Amber Indicates fair signal.
Red Indicates weak signal.
O Indicates no signal.
1
Included antennas are interchangeable, but third party antennas may not be.
Table 2
